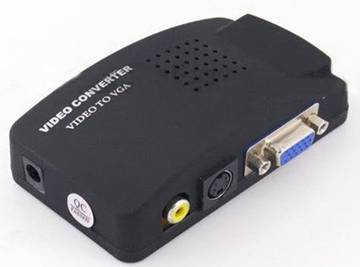

ITEM:AV-VGA
ITEM:AV-VGA
SPEC:
l 100% brand new with high quality.
l VGA + 1 RCA Composite Video + S-video in, VGA out.
l Convert the 1 RCA Composite Video + S-video + VGA to VGA signal.

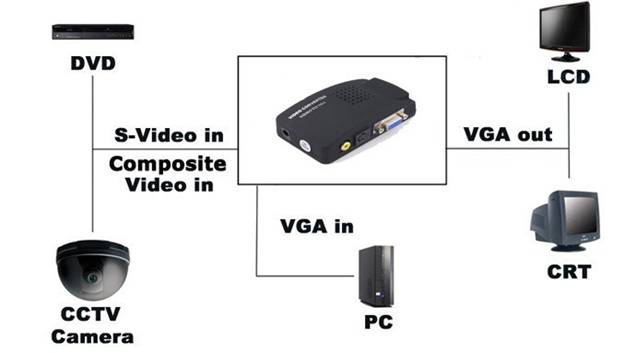

l Connect DVD, DVR, PC Host to the VGA Displayer like LCD monitor.

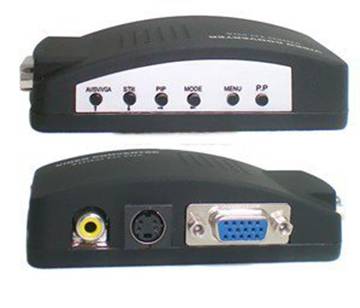

l "Input", "Menu", "Freeze/+", "Resolution/-" function button.
l Convenient way to switch input signal--just press the "Input" button.
l Supported VGA output resolution: 800 x 600@60HZ, 800 X , 1024 x 768@60HZ, 1280 x 1024@HZ.
l Adjustable input, brightness, contract, saturation and hue.
l PAL/NTSC auto-detective.
l Image-freezing function.
l OSD (On-Screen-Display) function.
l With 4 pin S-video cable, 1 RCA video cable, VGA cable, AC adapter.
Features:
|
Device Type: |
Composite Video + S-video + VGA to VGA Converter Adapter |
|
Interface Type: |
VGA + 1 RCA Composite Video + S-video in, VGA out |
|
Power Supply: |
Input--100-240V AC 50/60Hz; Output--5V 1A |
|
Dimension: |
3.7" L x 2.2" W x 1.0" H (93 x 55 x 26 mm) |
|
Weight: |
2.8 oz (79 g) |
|
Cable Length: |
VGA: 5.1 feet (1.56 m)
S-video: 4.8 feet (1.45 m)
1 RCA Video: 8.1 feet (2.45 m)
AC Adapter: 4.6 feet (1.41 m) |
BLACK COLOR :

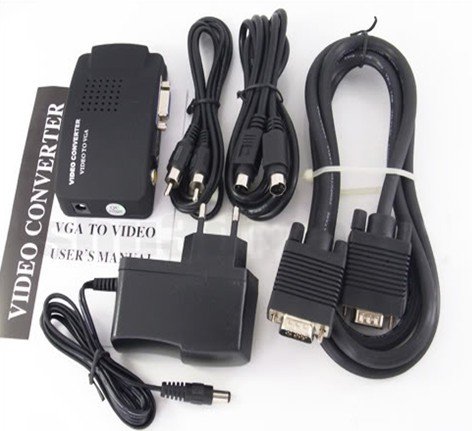

Package Contents
- 1 x Composite Video + S-video + VGA to VGA Converter Adapter.
- 1 x 4 Pin S-video Cable.
- 1 x VGA Cable.
- 1 x 1 RCA Video Cable.
- 1 x User Manual.
- 1 x AC Adapter.
