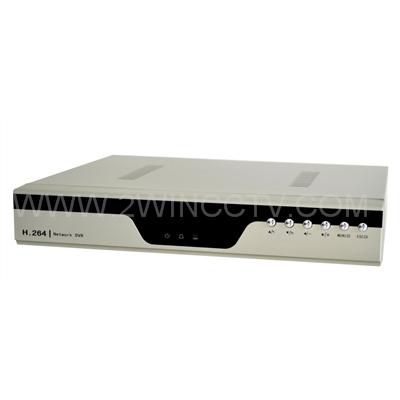

TW-DH9208
Name
Economical 8ch DVR
Sale Points
1.2ch D1 6ch CIF real time recording
2.Audio input:1ch,Audio output:1ch
3.Alarm input:1ch,Alarm output:1ch
4.Support Mobile phone remote view
5.Support RS485
6.Support free DDNS domain name
7.Support 1pcs HDD,unlimited for the capacity
Details:
Use the standard H

1.Use the standard H.264 video compression format stream lower,high quality,

longer recording time, taking up less bandwidth resources

2.GUI OSD interface,more intuitive,easier to use for user-friendly

3.Support 2ch Full D1 realtime + 6ch Full CIF realtime recording resolution.

4.Dual-stream design,network remote view effects and local recording effects

parameters can be set separately,independently of each other.

5.Hexaplex operation simultaneously:Preview,recording,playback,backup,network

live,mobilephone view

6.Support Multiple channel playback (Support 8CH playback simultaneously, each

channel can be enlarge to full screen)

7.Support Network function:one IE browser centralized monitoring and CMS Software

for multiple DVR (up to 255 DVR simultaneously)

8.Recording playback support:Normal play,Speed play,Fast back play,Manual single-frame slow play

9.Supports Built-in free DDNS domain name,with Server address: http://www.dvrcenter.com

10.Support Mobilephone remote view by Symbian S60V3/V5;WindowsMobile;Android system;

Iphone;Blackberry

11.Support alarm triggered recording will send alerts matter to the designated email.

12.System auto recovery to power after power reconnected,and return to the pre-power-down state



Specification



 Video Compression Format

 H.264

 Video System

 NTSC / PAL

 Video Input/Output(BNC)

 8CH BNC input/1CH BNC output

 Audio Input/Output

 1CH audio input,1CH audio output(RCA)

 Maximum Recording Rate
(D1/HD1/ CIF,CH1&CH2 max at
 D1&HD1;CH3-CH8 at CIF)

  D1:704*480,60fps <NTSC> /704*576 ,50fps <PAL>
 HD1:704*240,60fps <NTSC> /704*288 ,50fps <PAL>
 CIF:352*240,240 fps <NTSC> /352*288,200 fps<PAL>

 Image Quality Setting

 Supper Best,Well,Good,Medium,Normal and Bad

 Hard Disk Storage

 Support one SATA HDD, unlimited for the capacity

 Alarm Input/Output

 1CH alarm input,1CH alarm output

 Multiplex Operation

 Live display/record/playback/backup/network transmit

 Recording Mode

 Auto/Manual/Timer/Motion/Alarm

 Playback Mode

 Multiple slow and rapid play speeds,manual and single-frame
 play modes,and support of drag the sliding bar to set.

 Backup Device

 USB flash disk/USB remove HDD/Network

 Pre-alarm Recording

 Recording for 10 seconds before alarming

 Network Protocol

 TCP/IPPPPOE DDNS FTPUPNPARSP and NTP

 Ethernet remote view

 Support remote surveillance up to 10 users simultaneously

 VGA Interface

 YES ,support VGA and BNC can work at the same time

 Log record function

 YES

 Video Loss Detection

 YES

 Video Adjustable

 Hue /Saturation /Contrast /Brightness adjust

 PTZ Control

 YES ,built-in RS485 port,support 17 kinds protocols

 IR Remote control/USB Mouse

 YES

 Power Source

 DC 12V

 Size(mm)

 260(W) x 45(H) x 234(D)

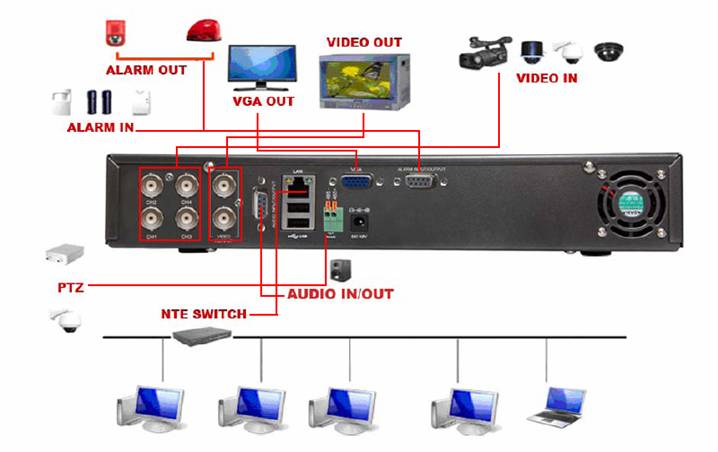

Reference Practical Product Connection Picture

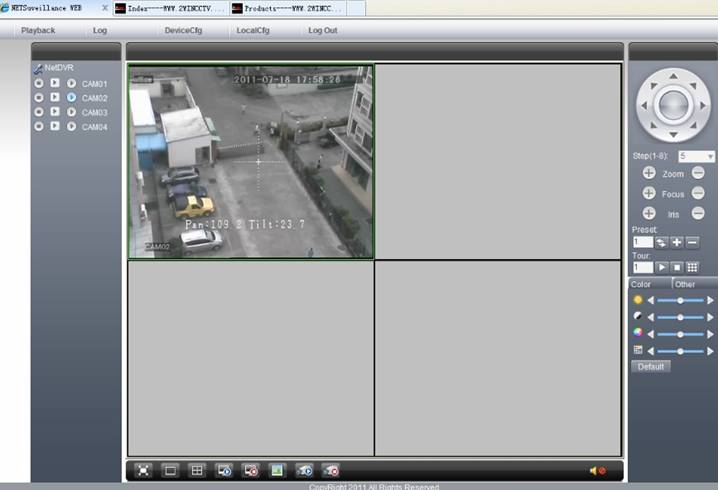

Internet Explorer Surveillance Interface

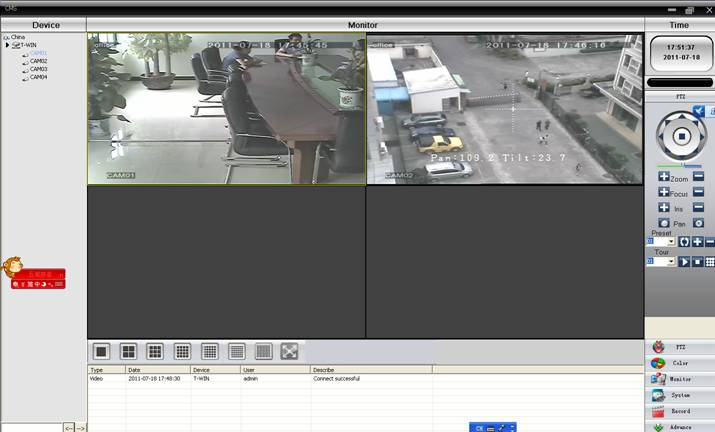

CMS Interface
