Product Guide
|
|
|
|
TW-DH8816W
Name
3G,Wifi wireless DVR
Sale Points
1.3G,WIFI function
2.Recording Resolution:16ch CIF (400 fps)
3.With built-in DDNS server
4.Support 3G mobile phone surveillance
5.Support 26 kinds of languages
6.Support U disk,USB mobile HDD,USB-RW,network
|
|
Details:
Newest 3G,Wifi,HDMI wireless 4ch CCTV DVR,3G,WIFI stand alone DVR, 3G
WIFI HDM Digital Video Recorder,HDMI Wireless network DVR, HDM wireless Digital
video Recorder,HDM wireless DVR, 3G WIFI HDMI DVR,4ch HDMI 3G WIFI DVR ,H
1.Functions: 3G, WIFI.
2.Novel Appearance: adopt brand new design idea and fashionable
blue color as the main color.
3.Recording Resolution: 16ch CIF (400 fps)
4.Novel Playback Mode: skip decode, average decode, full decode.
5.Backup Way: support U disk, USB mobile HDD, USB-RW,
network
6.With built-in DDNS server which realizes network monitoring
easily.
7.Support preview and playback image zooming function.
8.Mobile Surveillance: support all kinds of 3G mobile phone surveillance.
9.Language: support 26 kinds of languages.
10.Adopts electric circuit protection design which effectively
avoid breakdown by static electricity and lightning. The unique triple Watchdog
Timer function ensures the stability of the DVR.
Specification
|
Series
|
DH88 wireless Series
|
|
Model Number
|
TW-DH8816W
|
|
Operating System
|
LINUX operating system
|
|
Image Code Control
|
H.264
|
|
Dual Stream
|
Every channel can set
|
|
Video Standard
|
PAL/NTSC
|
|
Monitoring Image
Quality
|
D1(704*576)
|
|
Image Dynamic
Detection
|
Each screen can detect 396（22×18）detection areas and set 6-level sensitivity
|
|
Playback Image Quality
|
PAL
|
16ch CIF (704×576) 400 fps
|
|
NTSC
|
16ch CIF (720×480) 480 fps
|
|
Region Cover
|
Every channel can set 4 cover regions
|
|
Record Mode
|
Support manual, auto, dynamic detection, alarm trigger
|
|
Recording Playback
|
Support 1ch to 16ch playback simultaneously
|
|
Video Bit Rate
|
48Kbps-2048Kbps, support user-defined, MAX 2048Kbps
|
|
Bit Stream Type
|
Composite stream/video stream
|
|
Audio Compression
Standard
|
G.711A
|
|
Audio Bit Rate
|
64kbps
|
|
Backup Way
|
Support HDD, U disk, USB mobile HDD, USB burner, network storage
and backup
|
|
Operation Way
|
Mouse, remote control, front panel button, control keyboard
operation
|
|
Local Login
|
User name and password
|
|
Recording Storage
|
Local HDD, network
|
|
External Ports
|
Video Input
|
16ch BNC
|
|
Audio Input
|
4ch RCA
|
|
Voice Talkback Input
|
1 RCA port, the same channel as the first channel of the audio
input
|
|
Video Output
|
1ch BNC, 1ch VGA (Resolution: 800×600, 1024×768 optional)
|
|
Audio Output
|
1ch RCA
|
|
Network Port
|
1 RJ45,10M/100M self-adaptive LAN port
|
|
RS485 Port
|
Full duplex standard 485 port, support 19 kinds PTZ protocol
|
|
USB Port
|
3 USB 2.0 ports (one is on the front panel, the other two are on
rear panel)
|
|
Alarm Input
|
1ch
|
|
Alarm Output
|
1ch
|
|
Wireless Port
|
3G, WIFI
|
|
HDD
|
HDD Port
|
2 SATA HDD ports
|
|
Max Capacity
|
Every port MAX supports 2TB HDD
|
|
Mobile Surveillance
|
Support (iPhone, Windows Mobile, BlackBerry, Symbian, Android) 3G mobile phone
|
|
Power Supply
|
12V3.5A
|
|
Consumption
|
≤20W（without HDD）
|
|
Operation Temperature
|
-10℃-＋55℃
|
|
Operation humidity
|
10％-90％
|
|
Dimension
|
Equipment: 350mm×240mm×70mm Packing: 409mm×365mm×129mm
|
|
Weight(without HDD)
|
N.W.1.7Kg, with packing 2.89Kg
|
|
Carton
|
Size: 675mm×425mm×385mm, Weight: 15.22Kg; 5 pcs in a carton.
|
|
Installation Way
|
Desktop installation
|

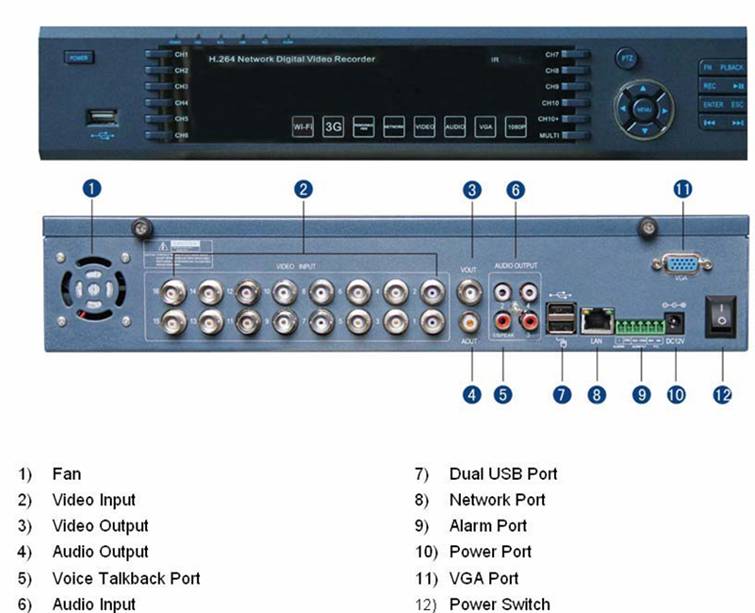

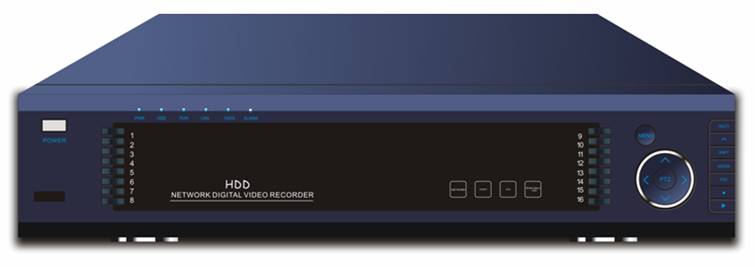

Panel Pictures
|
|
