Product Guide
|
|
|
|
TW-DH1504T
Name
4CH 15inch LCD DVR H.264
Sale Points
1.4 CH 15inch LCD
2.H.264 real-time network Combo DVR
3.Graphical interface, easy to use, mass storage HDD 1TB, SATA Interface
4.Support USB mouse,Backup file,update software
5.Support 3G mobile phone surveillance and E-mail 6.Support Half D1,Cif real-time recording
7.Support 4/8CH simultaneous playback
8.Support dual coding stream.
|
|
Details:

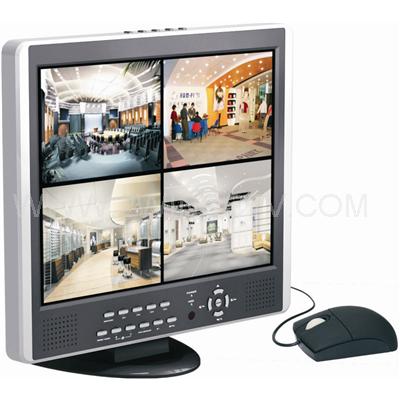

15" H
15" H.264 4CH/8CH LCD DVR

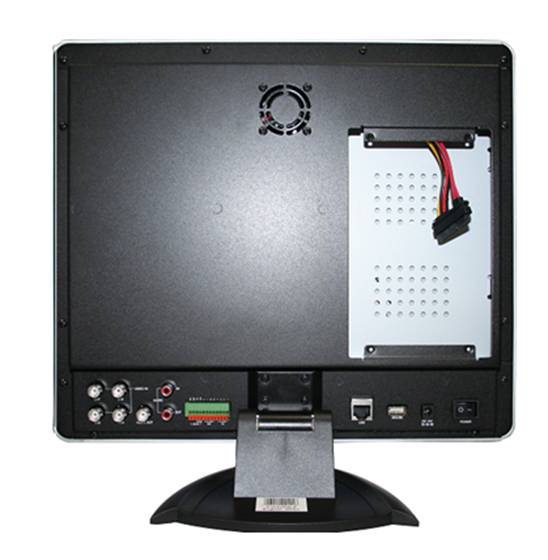

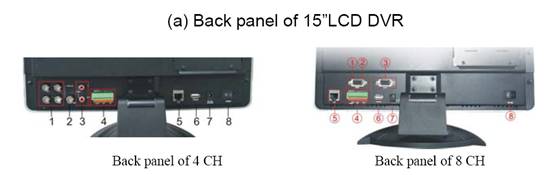

Back :
Sale Point :
|
H.264 triplex consumer DVR |
|
Graphical interface, easy to use |
|
Support USB mouse |
|
Backup file supports windows media player |
|
Support 3G mobile phone surveillance and E-mail function |
|
Support network file share function |
|
|
Support 4/8 CH simultaneous playback |
|
Support dual coding stream |
|
1504T: 4CH Video、4CH Audio |
|
1508T: 8CH Video、8CH Audio |
Detail Spec
|
Model |
TW-DH1504T |
TW-DH1508T |
|
Channel |
4CH |
8CH |
|
Video Input / Output |
NTSC / PAL/SECAM: BNC 4CH In / 1CH Out |
NTSC / PAL/SECAM: BNC 8CH In / 1CH Out |
|
Audio Input / Output |
4CH RCA Input; 1CH RCA Output |
8CH RCA Input; 1CH RCA Output |
|
LCD Display |
15" color LCD ,16:9,CCFL |
|
Display Resolution |
NTSC: 720 x 480; PAL: 720 x 576 |
|
Recording Resolution & Frame Rate |
NTSC:120fps@CIF,120fps@halfD1,60fps@D1
PAL:100fps@CIF,100fps@halfD1,50fps@D1 |
NTSC:240fps@CIF,120fps@halfD1,60fps@D1
PAL:200fps@CIF,100fps@halfD1,50fps@D1 |
|
Playback Resolution & Frame Rate |
NTSC:120fps@CIF,120fps@halfD1,60fps@D1
PAL:100fps@CIF,100fps@halfD1,50fps@D1 |
NTSC:120fps@CIF,60fps@halfD1,30fps@D1
PAL:100fps@CIF,50fps@halfD1,25fps@D1 |
|
Compression Format |
Video:H.264 Baseline Profile, Audio:G.711 |
|
Hard Disk Capacity |
up to 2TB, STATE interface HDDx1 |
|
Recording Mode |
Manual/ schedule/sensor trigger/motion detection |
|
Sensors, Alarm |
4CH Input, 1CH Output |
|
Network Interface |
1 RJ45 10/100Mbps Ethernet |
|
Media Backup |
1 USB 2.0 port for USB flash disk, Mobile HDD, |
|
PTZ Control |
RS-485 |
|
IR Remote Control Unit |
Yes |
|
USB Mouse |
Yes |
|
Operating Temperature |
0~+40℃ |
|
Power Supply |
DC 12V |
|
|
