TW-DH1508T
Name
8CH 15inch LCD DVR H.264
Sale Points
1.8 CH 15inch LCD
2.H.264 real-time network Combo DVR
3.Graphical interface, easy to use, mass storage HDD 1TB, SATA Interface
4.Support USB mouse,Backup file,update software
5.Support 3G mobile phone surveillance and E-mail 6.Support Half D1,Cif real-time recording
7.Support 4/8CH simultaneous playback
8.Support dual coding stream.
Details:
15" H

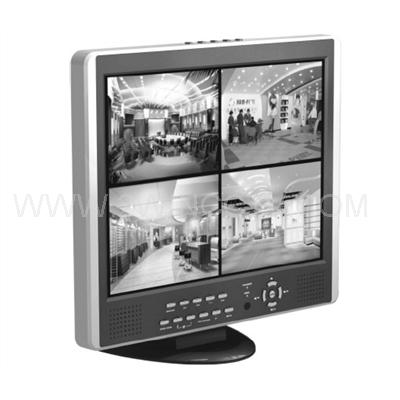

15" H.264 4CH/8CH LCD DVR

Back :







Sale Point :



H.264 triplex consumer DVR

Graphical interface, easy to use

Support USB mouse

Backup file supports windows media player

Support 3G mobile phone surveillance and E-mail function

Support network file share function



Support 4/8 CH simultaneous playback

Support dual coding stream

1504T: 4CH Video4CH Audio

1508T: 8CH Video8CH Audio



Detail Spec



Model

TW-DH1504T

TW-DH1508T

Channel

4CH

8CH

Video Input / Output

NTSC / PAL/SECAM: BNC 4CH In / 1CH Out

NTSC / PAL/SECAM: BNC 8CH In / 1CH Out

Audio Input / Output

4CH RCA Input; 1CH RCA Output

8CH RCA Input; 1CH RCA Output

LCD Display

15" color LCD ,16:9,CCFL

Display Resolution

NTSC: 720 x 480;  PAL: 720 x 576

Recording Resolution & Frame Rate

NTSC:120fps@CIF,120fps@halfD1,60fps@D1
PAL:100fps@CIF,100fps@halfD1,50fps@D1

NTSC:240fps@CIF,120fps@halfD1,60fps@D1
PAL:200fps@CIF,100fps@halfD1,50fps@D1

Playback Resolution & Frame Rate

NTSC:120fps@CIF,120fps@halfD1,60fps@D1
PAL:100fps@CIF,100fps@halfD1,50fps@D1

NTSC:120fps@CIF,60fps@halfD1,30fps@D1
PAL:100fps@CIF,50fps@halfD1,25fps@D1

Compression Format

Video:H.264 Baseline Profile, Audio:G.711

Hard Disk Capacity

up to 2TB, STATE interface HDDx1

Recording Mode

Manual/ schedule/sensor trigger/motion detection

Sensors, Alarm

4CH Input, 1CH Output

Network Interface

1 RJ45 10/100Mbps Ethernet

Media Backup

1 USB 2.0 port for USB flash disk, Mobile HDD,

PTZ Control

RS-485

IR Remote Control Unit

Yes

USB Mouse

Yes

Operating Temperature

0~+40

Power Supply

DC 12V
