All Products  >  CCTV DVR  >  With Screen  >  TW-DH1908T

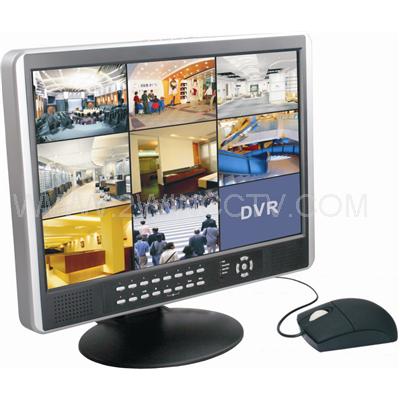

TW-DH1908T
Name
8CH 19inch LCD DVR H.264
Sale Points
1.8CH 19”LCD H.264 network real-time DVR 2.Graphical interface, easy to use, HDD 2TB SATA
3.Support USB mouse,PTZ Control,IR Remote Control
4. Backup file supports windows media player
5.Support 3G mobile phone surveillance and E-mail function 6.Support Up to 16 languages operation system
7.Support 4CH simultaneous playback
8. Support dual coding stream
Details:
19" H

19" H.264 8CH/16CH LCD DVR

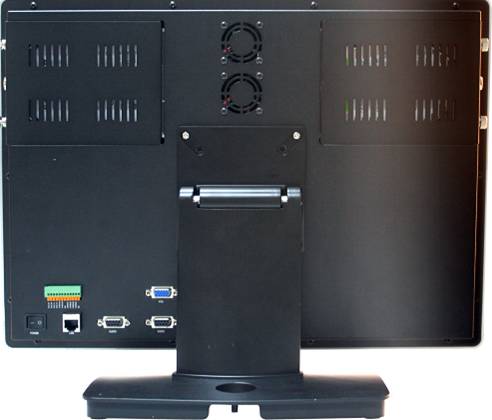

Back :









Sale Point :



H.264 triplex consumer DVR

Graphical interface, easy to use

Support USB mouse

Backup file supports windows media player

Support 3G mobile phone surveillance and E-mail function

Support network file share function



Support 8 CH simultaneous playback

Support dual coding stream

DH1908T: 8CH Video8CH Audio, HDD×2

DH1916T: 16CH Video16CH Audio, HDD×2



Detail Spec



Model

TW-DH1908T

TW-DH1916T

Channel

8CH

16CH

Video Input / Output

NTSC / PAL/SECAM: BNC 8CH In / 1CH Out

NTSC / PAL/SECAM: BNC 16CH In / 1CH Out/1CH Spot

Audio Input / Output

In: RCA  8CH       Out: RCA 1CH

In: RCA 16CH        Out: RCA 1CH

LCD Display

19" color LCD ,16:9,CCFL

Display Resolution

NTSC: 720 x 480;  PAL: 720 x 576

Recording Resolution & Frame Rate

NTSC:240fps@CIF,120fps@halfD1,60fps@D1
PAL:200fps@CIF,100fps@halfD1, 50fps@D1

NTSC:480fps@CIF,240fps@halfD1,120fps@D1
PAL: 400fps@ CIF,200fps@halfD1, 100fps@D1

Playback Resolution & Frame Rate

NTSC:240fps@CIF,120fps@halfD1,60fps@D1
PAL:100fps@CIF,50fps@halfD1,25fps@D1

Compression Format

Video: H.264Baseline Compression;  Audio:ADPCM

Hard Disk Capacity

Video:H.264BaselineCompression;Audio:ADPCM

Recording Mode

Manual/ schedule/sensor trigger/motion detection

Sensors, Alarm

4CH Input, 1CH Output

16CH Input, 4CH Output

Network Interface

1 RJ45 10/100Mbps Ethernet

Media Backup

1 USB 2.0 ports for USB flash disks HDD

PTZ Control

RS-485

IR Remote Control Unit

Yes

USB Mouse

Yes

Operating Temperature

0~+40

Power Supply

DC 12V



400 60
