Product Guide
|
|
|
|
TW-DH1004T
Name
4CH 10inch LCD DVR H.264
Sale Points
1.10inch H.264
2.4CH LCD Combo DVR
3.SATA HDD*1pcs
4.Video in 4ch ,video out 1ch
5.Audio in 2ch RCA,audio out 1ch RCA
|
|
Details:
10" H

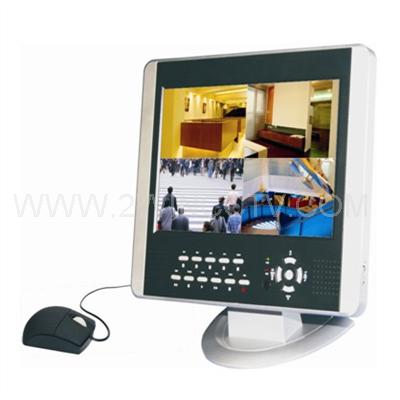

10" H.264 4CH LCD DVR

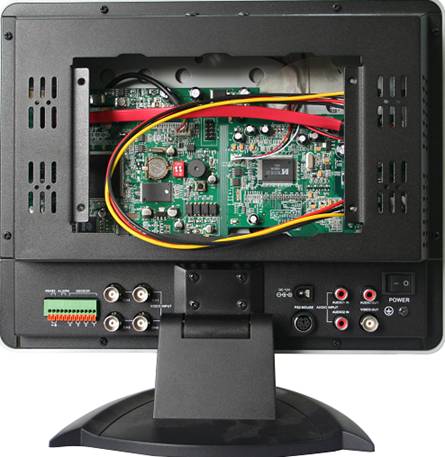

Back :
Sale Point :
|
Duplex operation: Simultaneous playback / record
|
|
10" color LCD monitor
|
|
Motion detection and video loss alarm function
|
|
Recording mode: continuous, motion detection, sensor activated,
time schedule
|
|
15 days continuous recording at 25 fps with 500GB HDD
|
|
Power recovery auto-record function
|
|
Available in NTSC & PAL system
|
|
38KHz IR remote controller included
|
|
Support mouse control
|
|
Detail Spec
|
Model
|
TW-DH1004T
|
|
Channel
|
4CH
|
|
Video Input / Output
|
NTSC / PAL : BNC 4CH
In / 1CH Out
|
|
Audio Input / Output
|
2CH RCA Input; 1CH RCA
Output
|
|
LCD Display
|
10" Color LED,
4:3, CCFL
|
|
Display Resolution
|
NTSC: 720 x 480;
PAL: 720 x 576
|
|
Recording Resolution
& Frame Rate
|
NTSC:120fps@CIF,120fps@halfD1,60fps@D1
PAL:100fps@CIF,100fps@halfD1,50fps@D1
|
|
Compression Format
|
Video:H.264 Baseline
Profile, Audio:G.711
|
|
Hard Disk Capacity
|
up to 2TB, STATE
interface HDDx1
|
|
Recording Mode
|
Manual/
schedule/sensor trigger/motion detection
|
|
Sensors, Alarm
|
4 Input, 1 Output
|
|
Network Interface
|
1 USB 2.0 port for USB
flash disk, Mobile HDD,
|
|
Media Backup
|
RS-485
|
|
PTZ Control
|
Yes
|
|
IR Remote Control Unit
|
Yes
|
|
USB Mouse
|
Yes
|
|
Operating Temperature
|
0~+40℃
|
|
Power Supply
|
DC 12V
|
|
|
