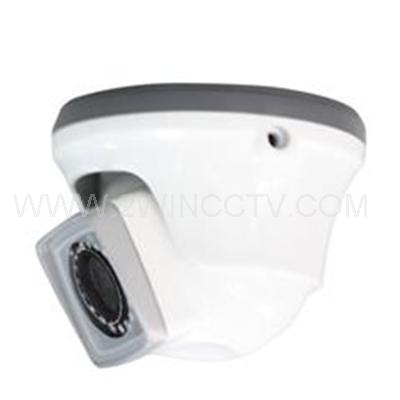

15Meter IP66 white color Camera
15Meter IP66 white color Camera
Features:
1\3 Sony CCD 600TVL
0.01low lux ,OSD cable control,2DDNR ,D-WDR, IR-smart control
1\3 Sharp CCD 600TVL
0.01low lux ,OSD cable control,2DDNR ,D-WDR, IR-smart control
1\3 Sony CCD 600TVL,0.01low lux
1\3 Sharp CCD 600TVL,0.01low lux
1\3 Sony CCD 480TVL,0.01low lux
1\3 Sharp CCD 480TVL,0.01low lux
Spec :
|
ELECTRIC
|
Power Input
|
DC12V/AC-24V
|
|
Power Consumption
|
<350 mA IR ON
|
|
VIDEO
|
Imaging Device
|
1/3” CCD
|
|
Horizontal Resolution
|
600TVL
|
|
Scanning System
|
2:1 Interiace
|
|
Min.lllumination
|
0 LUX IR ON
|
|
S/N
|
≥50Db (AGC OFF)
|
|
Gamma
|
0.45
|
|
Video Format
|
PAL/NTSC
|
|
Video Output
|
CVBS:1.0Vp-p/75Ω
|
|
OPERATION
|
On Screen Display
|
√
|
|
Shutter
|
PAL:1/60(Sec.)~1/100,000(Sec.);NTSC: 1/50(Sec.)~1/100,000(Sec.)
|
|
Sens-Up
|
X256
|
|
2D-DNR
|
YES
|
|
D-WDR
|
0-10 Level
|
|
DIS
|
√
|
|
Mirror Image
|
H/V/Rotate
|
|
HME
|
ON/OFF
|
|
BLC
|
√
|
|
AGC
|
ON/OFF
|
|
WB
|
ATW/AWC/MANUAL
|
|
D/N Mode
|
B/W;Color;Auto
|
|
CONFIGURATION
|
Lens
|
3.6MM LENS
|
|
IR-Rang
|
15 Meter
|
|
IR-CUT
|
√
|
|
Weather Proof Standar
|
IP-66
|
|
ENVIRONMENTAL
|
Operating Temp
|
-10℃-50℃
|
|
Storage Temp
|
-20℃-50℃
|
|
MECHANICAL
|
Dimension(W*H*D)
|
127*60*65mm
|
|
Weight
|
650g
|
