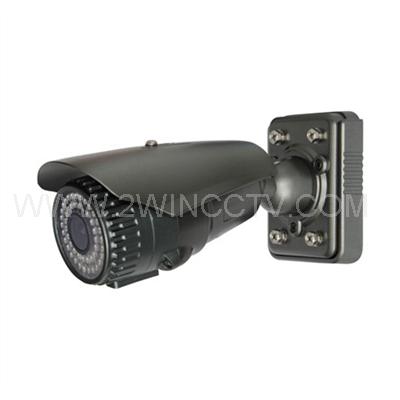

IP66 30meter IR ,4-9MM lens Waterproof Camera
IP66 30meter IR ,4-9MM lens Waterproof Camera
Features:
1\3 Sony CCD 650TVL
0.01low lux ,OSD menu ,3DDNR ,D-WDR ,HLC,DIS,IR-smart control
1\3 Sharp CCD 650TVL
0.01low lux ,OSD menu ,3DDNR ,D-WDR ,HLC,DIS,IR-smart control
1\3 Sony CCD 600TVL
0.01low lux ,OSD menu ,2DDNR ,D-WDR, IR-smart control
1\3 Sharp CCD 600TVL
0.01low lux ,OSD menu ,2DDNR ,D-WDR, IR-smart control
Spec :
|
ELECTRICAL
|
Power Input
|
DC12V/AC24V
|
|
Power Consumption
|
<400 mA
|
|
VIDEO
|
Imaging Device
|
1/3” CCD
|
|
Horizontal Resolution
|
630TVL
|
|
Scanning System
|
2:1 Interiace
|
|
Min.lllumination
|
0 LUX IR ON
|
|
IR-Range
|
30 Meter
|
|
S/N
|
≥50Db (AGC OFF)
|
|
Gamma
|
0.45
|
|
Video Format
|
PAL/NTSC
|
|
Video Output
|
CVBS:1.0Vp-p/75Ω
|
|
OPERATIONAL
|
On Screen Display
|
√
|
|
Shutter
|
PAL:1/60(Sec.)~1/100,000(Sec.);
NTSC: 1/50(Sec.)~1/100,000(Sec.)
|
|
Sens-Up
|
X256
|
|
3D-DNR
|
√
|
|
Motion Detection
|
4 Zone
|
|
D-WDR
|
0-10 level
|
|
Privacy Masking
|
8 Zone
|
|
DIS
|
√
|
|
Mirror Image
|
H/V/Rotate
|
|
HME
|
ON/OFF
|
|
D-Zoom
|
X32
|
|
BLC
|
√
|
|
AGC
|
ON/OFF
|
|
WB
|
ATW/AWC/MANUAL
|
|
D/N Mode
|
B/W;Color;Auto
|
|
CONFIGURATION
|
Lens
|
4-9mm Auto
Iris(2.8-12mm Auto Iris optional)
|
|
IR-CUT
|
√
|
|
Weather Proof Standar
|
IP-66
|
|
ENVIRONMENTAL
|
Operating Temp
|
-10℃-50℃
|
|
Storage Temp
|
-20℃-60℃
|
|
MECHANICAL
|
Dimension(W*H*D)
|
275*85*110mm
|
|
Weight
|
900g
|
