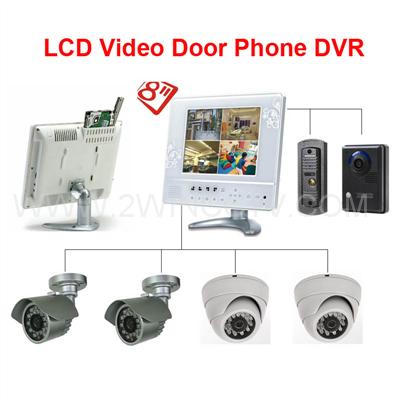

LCD video door phone DVR
Sale Points
1.With network function
2.2ch door phone video input
3.4ch CCTV camera video input
4.Touch and remote opertation
5.Support Playback
6.Support 500GB HDD

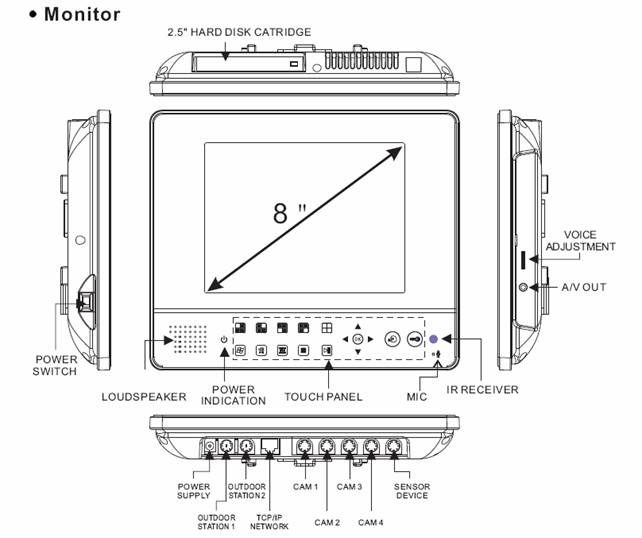

Monitor Descriptions:

Monitor Descriptions:

8” TFT –LCD and 2-way communication

Linux operating system, Multi-language interfaces

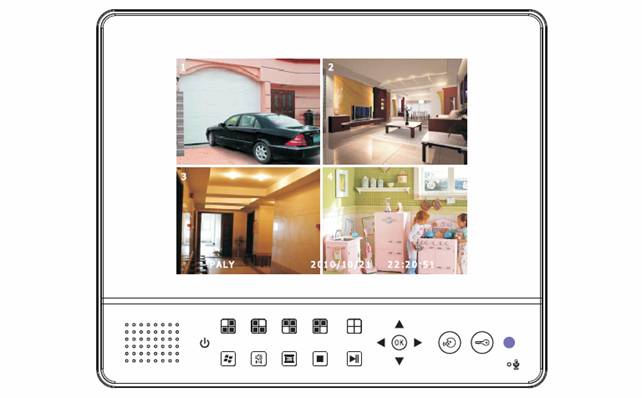

Quad-or-full screen display, good video, quality and high resolution

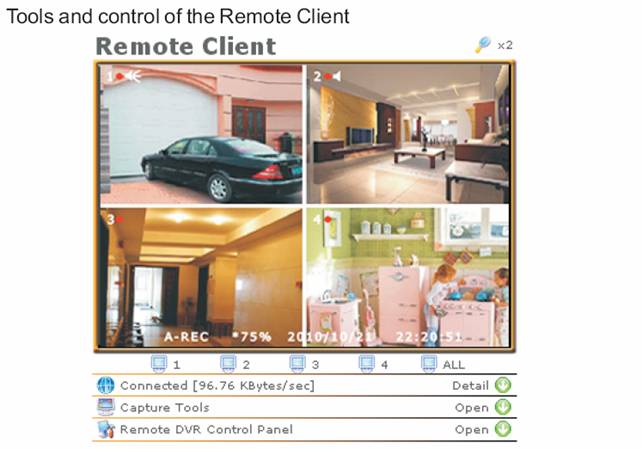

Demountable, network access, Remote access available.

Manual/motion detection/Sensor/visitor calling and loop coverage recording function

Playback through list of events and time search mode

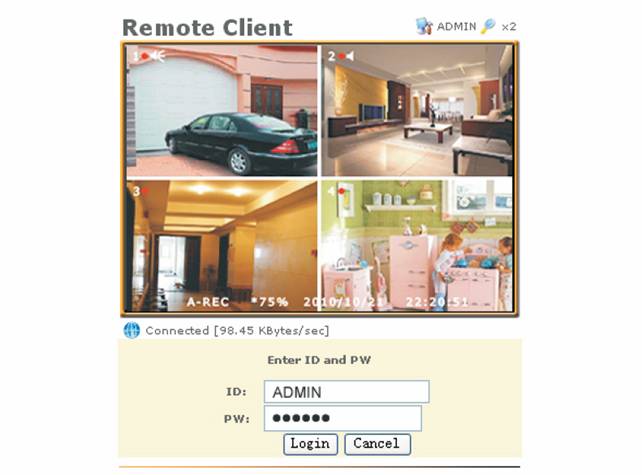

Password protection function

Desktop or wall mounting

Monitoring, warning, remote door releasing

Night vision

call/volume/contrast adjustable

Support software update.

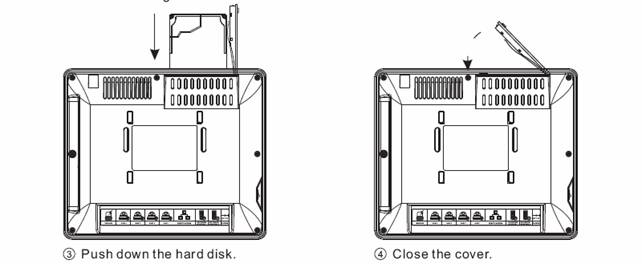

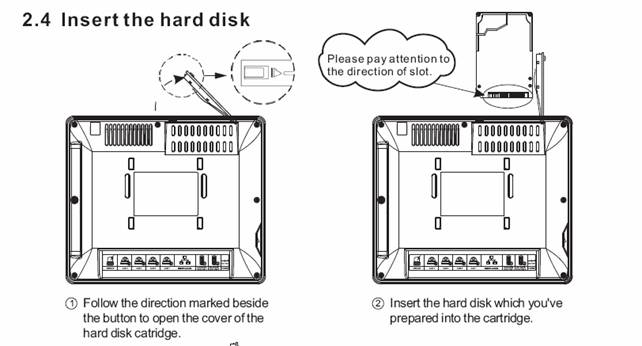

Supports Max 500G hard drive.

Touch and remote opertation.

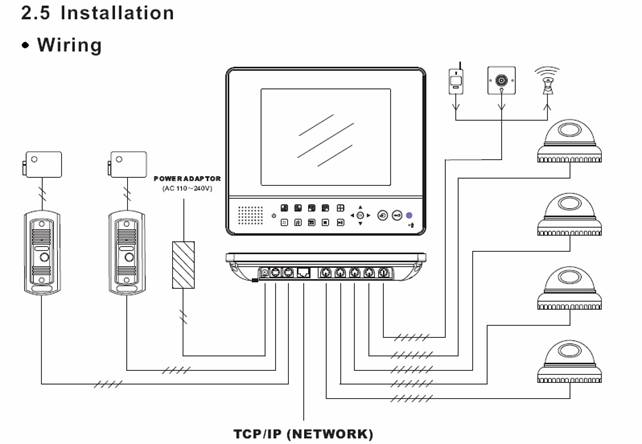

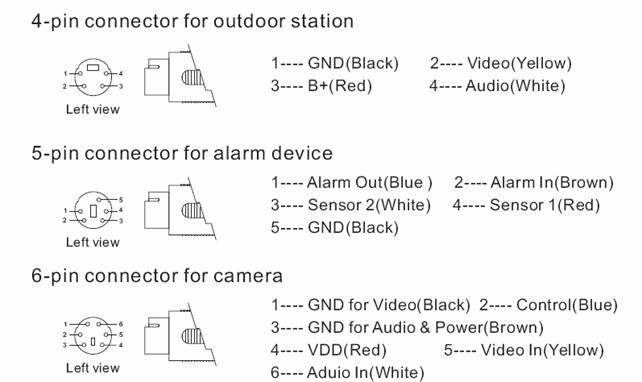

6 ch video input(4-channel CCTV video inputs, 2-channel video door phone inputs)

4 channel monitor or single on screen display.

2-way audio outputs

Power supply:  DV14V

work temperature: -15°C~+50°C

dimension: Monitor:250(L)×210(W)×35(H)mm


CCTV Camera Descriptions:

Sony, Sharp CCD are optional

420TVL,480TVL, 520TVL,600TVL are optional

Indoor cameras, outdoor cameras are optional









400 60
