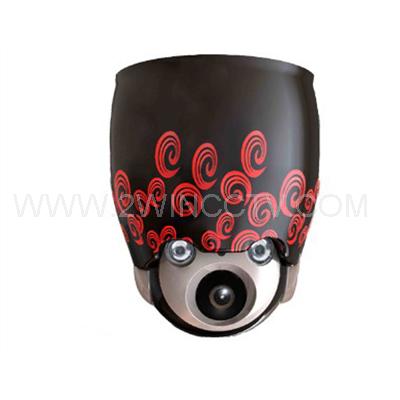

Mini PTZ TW-LS501
Mini PTZ TW-LS501
Sale points :
4" mini Indoor IR speed dome , IR distance 50M;
Support 10Xzoom module or board camera with lens;
Power supply DC12V /2A, consumption is less than 20W;
355° Rotation, plastic housing;
Spec :
|
Horizontal Rotation/ Speed |
20º/s |
|
Horizontal Tilt Speed |
20º/s |
|
Tilt Range |
0-90º is available |
|
Dome ID |
1~255 |
|
Communication Protocol |
Pelco-D,Pelco-P |
|
Communication |
RS485 Bus |
|
Baud Rate |
1200/2400/4800/9600bps |
|
Operating Humidity |
≤95% Non Condensing |
|
Operating Temperature |
-40℃ ～ +60℃ |
|
Power |
12DC, 2A |
|
IR Illumination Distance |
50M |
|
Power Consumption |
less than 20W |
|
Lightning protection |
transient voltage 1000V |
|
Compatible camara |
CCD board/10X zoom (Sony, Samsung etc.) |
|
LED Angle of Illumination |
Ø16=2 |
