GV-800 V4
Name
GV800 16CH V4 PCI
Sale Points
1.Input Type:D-Type: DB15 x 2
2.Video Input(s):16 Channel
3.Audio Input(s):4 Channel
4.Software:V8.4.0
Details:
Geovision DVR CARD GV-800

Geovision DVR CARD GV-800

Spec:

PCI-E

Input Type

D-Type: DB15 x 2

Video Input(s)

16 Channel

Audio Input(s)

4 Channel

Recording Rate

120 fps (NTSC), 100 fps (PAL)

Display Rate

120 fps (NTSC), 100fps (PAL).

Video Resolution

Full D1, Half D1, CIF

Compression Format

Geo MPEG4, Geo MPEG4 (ASP),

 Geo H264, Geo H264 V2

Installation Guide

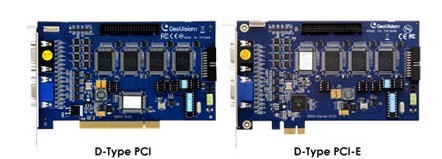

D-Type (PCI-E)Installing Two cards

OS Supported

Windows2000 / 2003 / XP / Vista / WIN 7

Software:V8.4.0 (Language: English)

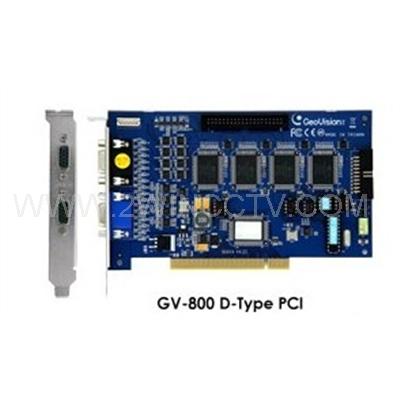

PCI

Input Type

D-Type: DB15 x 2

Video Input(s)

16 Channel

Audio Input(s)

4 Channel

Recording Rate

120 fps (NTSC), 100 fps (PAL)

Display Rate

120 fps (NTSC), 100fps (PAL).

Video Resolution

Full D1, Half D1, CIF

Compression Format

Wavelet, MPEG-4, GEOMPEG4

Geo H264, Geo H264 V2

Installation Guide

D-Type (PCI)Installing Two cards

OS Supported

Windows2000 / 2003 / XP / Vista / WIN 7

Software:V8.4.0 (Language: English)

Software:





Package :

Package Size:23.3X14X4CM,

1PCSweight0.5KG,

Package Size:49X35X32CM,

32PCS weight16.8KG
