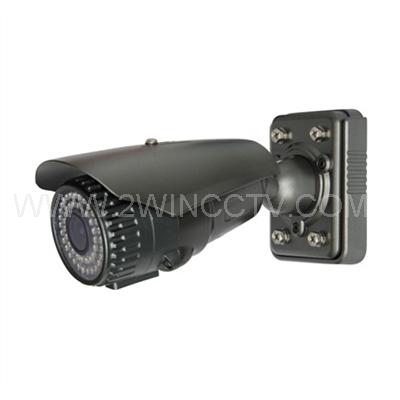

TW-CW133-PX Series
Name
WDR 690TVL 50M IP66 Camera
Sale Points
1.50 Meters IR Range
2.IP-66 Weather-Proof
3.Power Input : 12VDC /24V DC
4.6-15MM Auto Iris Lens
5.8-12MM Fixl Iris Lens(2.8-12MM Auto Iris Lens is optional) 6.OSD / IR-CUT
Details:
PIXIM WDR CAMERA

PIXIM WDR CAMERA

Features:

- 1/3-inch DPSDigital Pixel SystemSensor;
- 690HTVL-E Resolution;
- 120dB Ultral WDR range;
- OSD Menu;
- IR-CUT;
- 50 meters IR Range;
- 3D-DNR;
- AC 24V / 12V DC power design;
- IP-66 Weatherproof.

Spec :

Sensor

Sensor

1/3-inch DPS Sensor

Menu Operation

Video Format

PAL/NTSC

Resolution

690 HTVL Effective*

Mini.
Illumination

0 Lux IR ON

S/N Ratio

up to 50dB max (Y signal, AGC off)

Ess Modes

1x32 x

AGC

Programmable up to 50dB

WDR

120 db(
