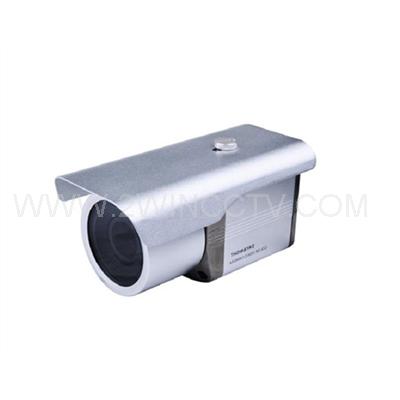

TW-CW136-PX Series
Name
WDR 690TVL IP55 WeatherProof Camera
Sale Points
1.IP-55 Weather-Proof
2.Power Input : 12VDC /24V AC
3.4-9MM Fix Lens(4-9MM Auto Iris Lens is optional)
4.OSD
Details:
PIXIM WDR CAMERA

PIXIM WDR CAMERA

Features:

- Super wide dynamic range 120dB;
- 4-9MM Lens;
- Hight resolution up to 690 HTVL Effective*;
- IP-55 Weather-proof standard;
- OSD menu;
- DC12V/AC24V Duplicate power design.

Spec :

Sensor

Sensor

1/3 DPS Sensor

Menu Operation

Video Format

PAL/NTSC

Resolution

690 HTVL Effective*

Mini.Illumination

0 Lux IR ON

S/N Ratio

up to 50dB max (Y signal, AGC off)

Ess Modes

1x32 x

AGC

Programmable up to 50dB

WDR

120 db(max)

Iris Control

Electronic iris/Auto iris lens (DC drive)

Extended Slow Shutter

2x / 4x / 8x / 16x / 32x

Noise Reduction

3D Motion Adaptive

Digital Zoom

8x

White Balance

ATW, AWB

Low Light Mode

Low speed shutter,AGC,Sense up B/W Low Speed Shutter .Image

Day/Night

True Day/Night, Soft Day/Night (B/W)

Sync Mode

Internal/Line Lock

Power

Voltage

12V DC

24V AC/12V DC

Current

≤150mA(IR OFF) ≤750mA(IR ON)

Vide output

1.0Vp-p/75 Ω Composite

Lens

4-9mm

4-9mm Auto Iris Lens

Operating Temp.

-1050

Storage Temp.

-2060

Dimension

150*73*72mm

Weight

700g
