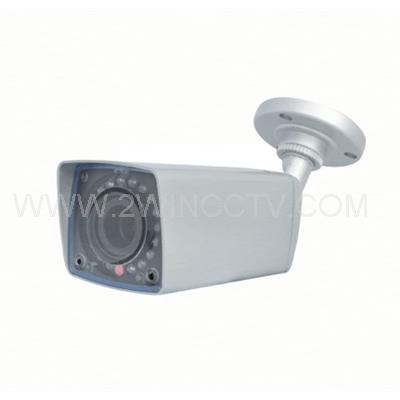

PIXIM WDR CAMERA
PIXIM WDR CAMERA
Features:
Super wide dynamic range 120dB;
- 3.6MM Lens;
- 20Meters IR Range;
- Hight resolution up to 690 HTVL Effective*;
- IP-55 Weather-proof standard;
- OSD menu;
- DC12V Duplicate power design;
- IR-CUT.
Spec :
|
Sensor |
Sensor |
1/3 DPS Sensor |
|
Menu Operation |
Video Format |
PAL/NTSC |
|
Resolution |
690 HTVL Effective* |
|
Mini.Illumination |
0 Lux IR ON |
|
S/N Ratio |
up to 50dB max (Y signal, AGC off) |
|
Ess Modes |
1x～32 x |
|
AGC |
Programmable up to 50dB |
|
WDR |
120 db(max) |
|
Iris Control |
Electronic iris/Auto iris lens (DC drive) |
|
Extended Slow Shutter |
2x / 4x / 8x / 16x / 32x |
|
Noise Reduction |
3D Motion Adaptive |
|
Digital Zoom |
8x |
|
White Balance |
ATW, AWB |
|
Low Light Mode |
Low speed shutter,AGC,Sense up B/W Low Speed Shutter .Image |
|
Day/Night |
True Day/Night, Soft Day/Night (B/W) |
|
Sync Mode |
Internal/Line Lock |
|
Power |
Voltage |
12V DC |
|
Current |
≤150mA(IR OFF) ≤750mA(IR ON) |
|
Vide output |
1.0Vp-p/75 Ω Composite |
|
Lens |
3.6mm |
|
Operating Temp. |
-10℃～50℃ |
|
Storage Temp. |
-20℃～60℃ |
|
Dimension |
112*60*65mm |
|
Weight |
480g |
