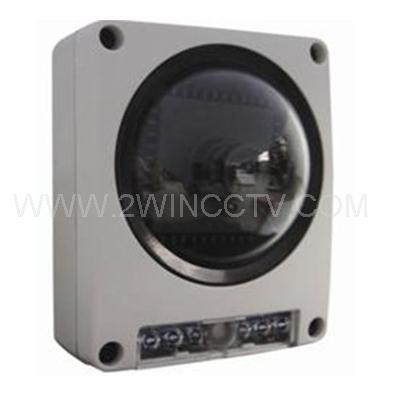

PIXIM WDR CAMERA
PIXIM WDR CAMERA
Features:
- Wall corner camera ;
- 1/3-inch Pixim DPS seawolf solution;
- Ultra wide dynamic range up to125dB;
- Hight resolution 690 HTVL Effective*;
- The ultimateture color rendring under any lighting condition;
- Long-lifeLED and 5-10 Meters IR Range;
- OSD menu;
- 3Axis design and wall corner installation.
Spec :
|
Sensor
|
Sensor
|
1/3 DPS Sensor
|
|
Menu Operation
|
Video Format
|
PAL/NTSC
|
|
Resolution
|
690 HTVL Effective*
|
|
Mini.Illumination
|
0 Lux IR ON
|
|
|
S/N Ratio
|
up to 50dB max (Y
signal, AGC off)
|
|
Ess Modes
|
1x~32 x
|
|
AGC
|
Programmable up to
50dB
|
|
WDR
|
120 db(max)
|
|
Iris Control
|
Electronic iris/Auto
iris lens (DC drive)
|
|
Extended Slow Shutter
|
2x / 4x / 8x / 16x /
32x
|
|
Noise Reduction
|
3D Motion Adaptive
|
|
Digital Zoom
|
8x
|
|
White Balance
|
ATW, AWB
|
|
Low Light Mode
|
Low speed
shutter,AGC,Sense up B/W Low Speed Shutter .Image
|
|
Day/Night
|
True Day/Night, Soft
Day/Night (B/W)
|
|
Sync Mode
|
Internal/Line Lock
|
|
Power
|
Voltage
|
12V DC
|
|
Current
|
≤150mA(IR OFF) ≤350mA(IR ON)
|
|
Vide output
|
1.0Vp-p/75 Ω Composite
|
|
Lens
|
3.6 mm
|
|
IR-Range
|
5-10 Meters
|
|
Operating Temp.
|
-10℃～50℃
|
|
Storage Temp.
|
-20℃～60℃
|
|
Dimension
|
88*73*79 mm
|
|
Weight
|
200g
|
