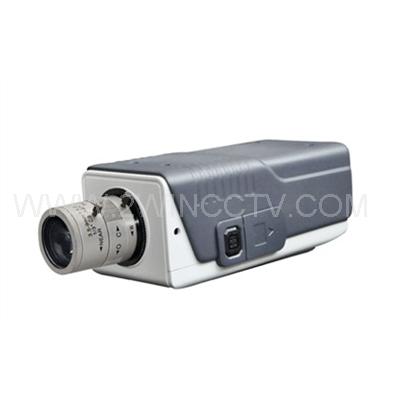

PIXIM WDR CAMERA
PIXIM WDR CAMERA
Features:
- Super wide dynamic range 120dB;
- Hight resolution up to 690 HTVL Effective*;
- OSD menu;
- 12V/24V Duplicate power design;
- IR-CUT.
Spec :
|
Sensor
|
Sensor
|
1/3 DPS Sensor
|
|
Menu Operation
|
Video Format
|
PAL/NTSC
|
|
Resolution
|
690 HTVL Effective*
|
|
Mini.Illumination
|
0.1 lux min
illumination (f/1.2, 50 IRE, 30 fps, CMY)
|
|
S/N Ratio
|
up to 50dB max (Y
signal, AGC off)
|
|
Ess Modes
|
1x~32 x
|
|
AGC
|
Programmable up to
50dB
|
|
WDR
|
120 db(max)
|
|
Iris Control
|
Electronic iris/Auto
iris lens (DC drive)
|
|
Extended Slow Shutter
|
2x / 4x / 8x / 16x /
32x
|
|
Noise Reduction
|
3D Motion Adaptive
|
|
Digital Zoom
|
8x
|
|
White Balance
|
ATW, AWB
|
|
Low Light Mode
|
Low speed
shutter,AGC,Sense up B/W Low Speed Shutter .Image
|
|
Day/Night
|
True Day/Night, Soft
Day/Night (B/W)
|
|
Sync Mode
|
Internal/Line Lock
|
|
Power
|
Voltage
|
12VDC/24VAC
|
12VDC
|
|
Current
|
≤100mA (AC 24V)
|
|
Vide output
|
1.0Vp-p/75 Ω Composite
|
|
Lens Mount
|
CS Mount
|
|
Operating Temp.
|
-10℃~50℃
|
|
Storage Temp.
|
-20℃~60℃
|
|
Dimension
|
70*56*136
|
|
Weight
|
450g
|
