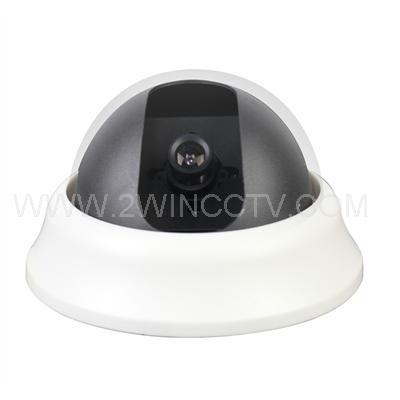

Plastic Dome Camera Board Lens
Plastic Dome Camera Board Lens
Lens:3.6mm/F2.0
Size: ¢108 x 60(H) mm
Weight: 300g
Image Sensor |
1/3" SONY Super HAD CCD II |
1/3" SHARP |
1/3" SONY Super HAD CCD II |
1/3" SHARP |
1/3" SONY |
1/3" HDIS |
Horizontal Resolution |
960H, 700TVL, Low Illumination, DWDR, OSD, DNR, UTC Effio-E |
960H, 700TVL, Low Illumination |
650TVL, Low Illumination, DWDR, OSD, DNR |
600TVL, Low Illumination |
500TVL, Low Illumination |
700TVL |
Pixels |
NTSC:976(H)×494(V), PAL:976(H)x582(V ) |
NTSC:768(H)×494(V), PAL:752(H)x582(V) |
PAL:752(H)×582(V), NTSC:768(H)×494(V) |
PAL:500(H)×582(V) NTSC:510(H)×492(V) |
728(H)×488(V) |
TV System |
PAL/NTSC |
Lens |
Board Lens 3.6mm/F2.0 |
Sync System |
Internal |
Usable Illumination |
0.001Lux/F2.0 |
0.01Lux/F2.0 |
0.001Lux/F2.0 |
S/N Ratio |
≥52dB (AGC OFF) |
≥48dB (AGC OFF) |
≥46dB (AGC OFF) |
Gamma Correction |
0.45 |
Video Out |
Composite Signal (1.0Vp-p, 75Ω) |
Scanning System |
PAL:625 Lines, 50 Field/Sec;NTSC:525 Lines, 60 Field/Sec |
Electronic Shutter Time |
Auto:PAL 1/50-1/100, 000Sec;NTSC 1/60-1/100, 000Sec |
Operation Temperature |
-10℃ ~ +50℃ RH95% Max |
Storage Temperature |
-20℃ ~ +60℃ RH95% Max |
White Balance |
Auto |
Power Source |
DC12V 150mA |
Dimension |
¢108 x 60(H) mm |
Package |
46*39*38mm 50PCS/CTN |
Weight |
300g |
