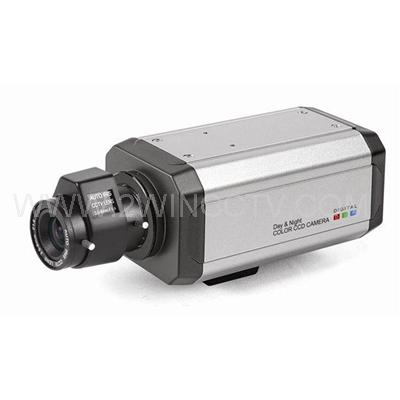

TW-CB001
Name
Effio-P WDR 700TVL Box Camera
Sale Points
Standard Box Camera
SONY CCD
Iris control: DC / VIDEO
With RS485
Details:
Standard Box Camera

Standard Box Camera

SONY CCD

Iris control: DC / VIDEO With RS485

Size: 110(W)x45(H)x55(D)mm

Weight: 0.4kg



Image Sensor

Color 1/3" SONY

Color 1/3" SONY

Horizontal Resolution

Color 1/3" SONY 700TVL, Low Illumination, DWDR, OSD, DNR UTC Effio-E

700TVL, Low Illumination, Real WDR, OSD, 3D NR UTC Effio-P

Pixels

NTSC:976(H)×494(V),PAL:976(H)x582(V)

TV System

PAL/NTSC

IR LED

NO

IR Series Distance

NO

Lens

DC / VIDEO

Sync System

Internal

Usable Illumination

0.0005Lux/F2.0

S/N Ratio

≥48dB (AGC OFF)

≥115dB (AGC OFF)

Gamma Correction

0.45

Video Out

Composite Signal (1.0Vp-p, 75Ω)

Scanning System

PAL:625 Lines, 50 Field/Sec;NTSC:525 Lines, 60 Field/Sec

Electronic Shutter Time

Auto:PAL 1/50-1/100, 000Sec;NTSC 1/60-1/100, 000Sec

Operation  Temperature

-10 ~ +50 RH95% Max

Storage  Temperature

-20 ~ +60 RH95% Max

White Balance

Auto

Power Source

DC12V 400mA

Dimension

110(W)x45(H)x55(D)mm

Package

51*39*34mm, 40PCS/CTN

Weight

400g
