Lens:3

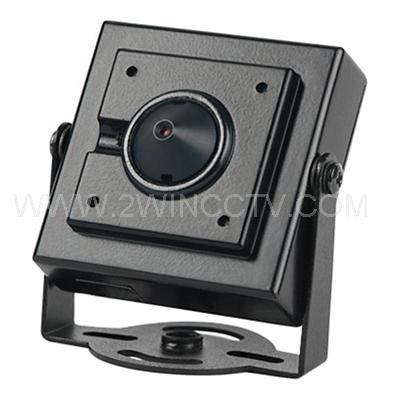

Lens:3.7mm Taper Pinhole Lens
Dimension:35(W)x10(H)x35(D)mm
Weight:150g
|
Image Sensor
|
1/3" SHARP
|
Color 1/3" SONY
|
|
Horizontal Resolution
|
600TVL, Low Illumination
|
500TVL, Low Illumination, DWDR, OSD, DNR
|
|
TV System
|
PAL/NTSC
|
|
Lens
|
3.7mm Taper Pinhole Lens
|
|
Sync System
|
Internal
|
|
Usable Illumination
|
0.0005Lux/F2.0
|
|
S/N Ratio
|
≥48dB (AGC OFF)
|
|
Gamma Correction
|
0.45
|
|
Video Out
|
Composite Signal (1.0Vp-p, 75Ω)
|
|
Scanning System
|
PAL:625 Lines, 50 Field/Sec;NTSC:525 Lines, 60
Field/Sec
|
|
Electronic Shutter Time
|
Auto:PAL 1/50-1/100, 000Sec;NTSC 1/60-1/100,
000Sec
|
|
Operation Temperature
|
-10℃ ~ +50℃ RH95% Max
|
|
Storage Temperature
|
-20℃ ~ +60℃ RH95% Max
|
|
White Balance
|
Auto
|
|
Power Source
|
DC12V 300mA
|
|
Dimension
|
35(W)x10(H)x35(D)mm
|
|
Package
|
52*39*28mm, 100PCS/CTN
|
|
Weight
|
150g
|
