All Products  >  CCTV CAMERA  >  New SDI HD Camera  >  TW-SD703

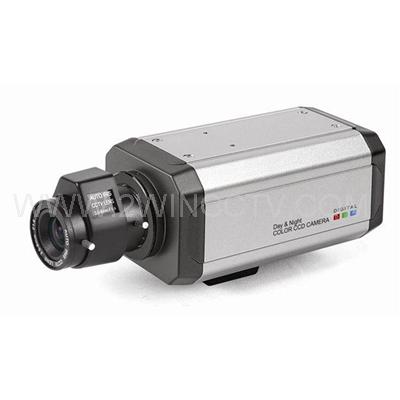

TW-SD703
Name
Sony SDI Box Camera
Sale Points
1/3" SONY 2.1Megapixel CMOS Sensor ;
HD-SDI(1080P@25fps/30fps);
DNR(Digital Noise Reduction)
C & CS Mount Lens
Details:
Standard Box Camera

Standard Box Camera

SONY CCD

Iris control: DC / VIDEO With RS485

Size: 110(W)x45(H)x55(D)mm

Weight: 0.4kg



Image Sensor

1/3" Sony 2.1Megapixel CMOS Sensor

Scanning System

Progressive Scan

S/N Ratio

More than 50dB (AGC Off)

Video Output Mode

1080P(1920 X 1080)

Video Output Level

HD-SDI /1.0 Vp-p (75ΩComposite)

Lens

C / CS MOUNT

Min. Illumination

0.01Lux

OSD

Built-in

Electronic Shutter

Auto/FLK/1/25,30sec ~ 1/50000sec

Communication

RS-485[Baud Rate:240038400]

S/N Ratio

≥48dB (AGC OFF)≥52dB (AGC OFF)≥115dB (AGC OFF)

Protocol

Pelco-D

Voltage/Current

DC12V+10% / 250mA

Operating temperature

-10°~ +50°

Dimension (mm)

110(W)x45(H)x55(D)mm

Weight (kg)

400g
