TW-SD912
Name

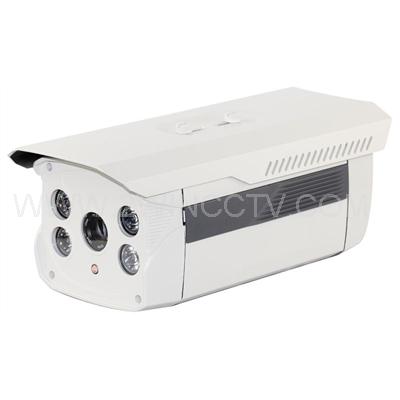

80M HD SDI CCTV Camera
Sale Points
1/3" Sony 2.1Megapixel CMOS Sensor ;
HD-SDI(1080P@25fps/30fps);
DNR(Digital Noise Reduction)
Cable Through Bracket
Details:
IR LED: ¢42X4PCS IR range: 80M

IR LED: 42X4PCS IR range: 80M

CS Lens 12mm/F2.0 (3M Pixels)

Water resistance: IP66

Size: 275(W) x 113(H) x 139(D)mm

Weight:2kg



Image Sensor

1/3" Sony 2.1Megapixel CMOS Sensor

Scanning System

Progressive Scan

S/N Ratio

More than 50dB (AGC Off)

Video Output Mode

1080P(1920 X 1080)

Video Output Level

HD-SDI /1.0 Vp-p (75ΩComposite)

Lens

CS 8mm lens (3M Pixels)

Min. Illumination

0.01Lux

OSD

Built-in

Electronic Shutter

Auto/FLK/1/25,30sec ~ 1/50000sec

Communication

RS-485[Baud Rate:240038400]

S/N Ratio

≥48dB (AGC OFF)≥52dB (AGC OFF)≥115dB (AGC OFF)

Protocol

Pelco-D

Voltage/Current

DC12V+10% / 250mA

Operating temperature

-10°~ +50°

Dimension (mm)

275(W) x 113(H) x 139(D)mm

Weight (kg)

2kg
