TW-SD915
Name

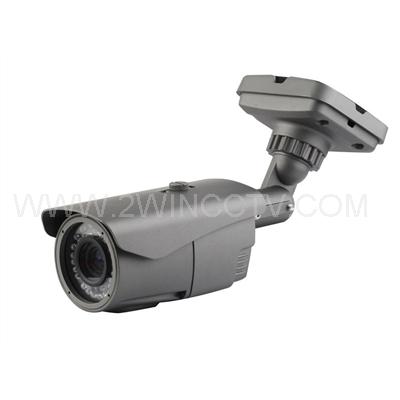

60M 1080P HD SDI Megapixel CCTV Camera
Sale Points
1/3" Sony 2.1Megapixel CMOS Sensor; HD-SDI(1080P@25fps/30fps);
DNR(Digital Noise Reduction)
Cable Through Bracket
Details:
*IR LED: ¢5X72PCS IR range: 60M

*IR LED: 5X72PCS IR range: 60M


* 2.8-12mm Manual Zoom Lens (3M Pixels)


*Water resistance: IP66


*3-Axis cable built-in bracket


*Size: 260(W) x 98(H) x 95(D)mm


Weight: 1.7kg



Image Sensor

1/3" Sony 2.1Megapixel CMOS Sensor

Scanning System

Progressive Scan

S/N Ratio

More than 50dB (AGC Off)

Video Output Mode

1080P(1920 X 1080)

Video Output Level

HD-SDI /1.0 Vp-p (75ΩComposite)

Lens

2.8-12mm Manual Zoom Lens (3M Pixels)

Min. Illumination

0.01Lux

OSD

Built-in

Electronic Shutter

Auto/FLK/1/25,30sec ~ 1/50000sec

Communication

RS-485[Baud Rate:240038400]

S/N Ratio

≥48dB (AGC OFF)≥52dB (AGC OFF)≥115dB (AGC OFF)

Protocol

Pelco-D

Voltage/Current

DC12V+10% / 250mA

Operating temperature

-10°~ +50°

Dimension (mm)

260(W) x 98(H) x 95(D)mm

Weight (kg)

1.7kg
