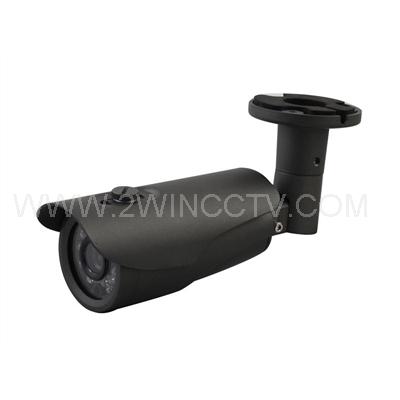

TW-CW078
Name
Waterproof CCTV Camera
Sale Points
IR LED: ¢5X24PCS
IR range: 20M
Board Lens 3.6mm/F2.0
Water resistance: IP66 3-Axis cable built-in bracket
Details:
IR LED: ¢5X24PCS

IR LED: 5X24PCS


IR range: 20M


Board Lens 3.6mm/F2.0


Water resistance: IP66


3-Axis cable built-in bracket


Size: 208(W) x 66(H) x 65(D)mm


Weight: 500g



Image Sensor

1/3" HDIS

1/3" SONY CCD

1/3" SHARP CCD

1/3" SONY Super HAD CCDII

Horizontal Resolution

700TVL, With IR-CUT

960H, 800TVL, With IR-CUT

500TVL, Low Illumination

600TVL, Low Illumination

960H, 700TVL, Low Illumination

650TVL, Low Illumination, DWDR, OSD, DNR

960H, 700TVL, Low Illumination, DWDR, OSD, DNR, UTC Effio-E

Pixels



976(H)×496(V)

PAL:500(H)×582(V) NTSC:510(H)x492(V)

PAL:752(H)×582(V) NTSC:768(H)×494(V)

NTSC:976(H)×494(V) PAL:976(H)x582(V)

NTSC:768(H)×494V) PAL:752(H)x582(V)

NTSC:976(H)×494(V) PAL:976(H)x582(V)

TV System

PAL/NTSC

IR Series Distance

20 Meters

IR LED

5X24PCS

Lens

Board Lens 3.6mm/F2.0

Sync System

Internal, Negative sync

Usable Illumination

0.001Lux/F1.2

0.01Lux/F1.2

0.001Lux /F1.2

S/N Ratio

≥ 46dB (AGC OFF)

≥ 48dB

≥52dB (AGC OFF)

Gamma Correction

0.45

Video Out

Composite Signal (1Vpp, 75Ω )

Scanning System

2:1 interface

Electronic Shutter Time

NTSC: 1/60s~1/100, 000s, PAL: 1/50s~1/100,000s

Operation  Temperature

-10 ~ +50 RH95% Max

Storage  Temperature

-30~+60 RH95% MAX

White Balance

Auto

Power Source

DC12V(+/-10%)/350mA

Dimension

208(W) x 66(H) x 65(D)

Package



Weight

500g



400 60
