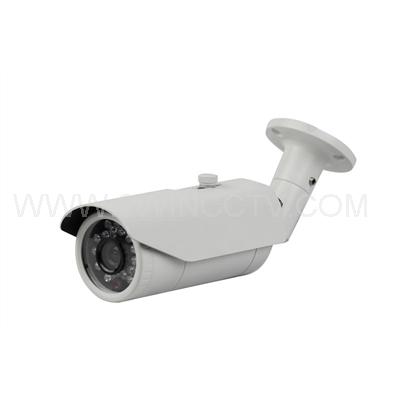

TW-CW059
Name
800TVL Waterproof Camera
Sale Points
IR LED: ¢5X24PCS
IR range: 20M
Board Lens 3.6mm/F2.0
Water resistance: IP66
3-Axis cable built-in bracket
Details:
IR LED: ¢5X24PCS IR range: 20M

IR LED: 5X24PCS IR range: 20M

Board Lens 3.6mm/F2.0

Water resistance: IP66

3-Axis cable built-in bracket

Size: 220(W) x 65(H) x 55(D)mm

Weight: 0.55kg



Image Sensor

1/3" HDIS

1/3" SONY

1/3" SHARP

1/3" SONY

1/3" SHARP

1/3" SONY

Horizontal Resolution

700TVL, with IR-CUT

960H, 700TVL, Low Illumination, DWDR, OSD, DNR, UTC Effio-E

960H, 700TVL, Low Illumination

650TVL, Low Illumination, DWDR, OSD, DNR

600TVL, Low Illumination

500TVL, Low Illumination

Pixels

728(H)×488(V)

NTSC:976(H)×494(V),
PAL:976(H)x582(V )

NTSC:768(H)×494(V),
PAL:752(H)x582(V)

PAL:752(H)×582(V),
NTSC:768(H)×494(V)

PAL:500(H)×582(V)
NTSC:510(H)×492(V)

TV System

PAL/NTSC

IR LED

5X24PCS

IR Series Distance

20M

Lens

Board Lens 3.6mm/F2.0

Sync System

Internal

Usable Illumination

0.001Lux/F2.0

0.01Lux/F2.0

S/N Ratio

≥46dB (AGC OFF)

≥56dB (AGC OFF)

≥48dB (AGC OFF)

Gamma Correction

0.45

Video Out

Composite Signal (1.0Vp-p, 75Ω)

Scanning System

PAL:625 Lines, 50 Field/Sec;NTSC:525 Lines, 60 Field/Sec

Electronic Shutter Time

Auto:PAL 1/50-1/100, 000Sec;NTSC 1/60-1/100, 000Sec

Operation  Temperature

-10 ~ +50 RH95% Max

Storage  Temperature

-20 ~ +60 RH95% Max

White Balance

Auto

Power Source

DC12V 300mA

Dimension

220(W) x 65(H) x 55(D)mm

Package

55 * 42 * 42 cm 50PCS/CTN

Weight

0.55kg
