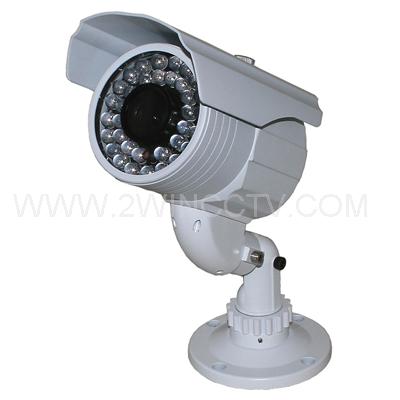

TW-CW147
Name
CCTV Camera 700TVL 2.8-12MM Varifocal Lens
Sale Points
IR LED: ¢8X36PCS
IR range: 50M
2.8-12mm Manual Zoom Lens(2M Pixels)
Water resistance: IP66
Details:
IR LED: ¢8X36PCS IR range: 50M

IR LED: 8X36PCS IR range: 50M

2.8-12mm Manual Zoom Lens (2M Pixels)

Water resistance: IP66 3-Axis cable built-in bracket

DC12V/AC24V double voltage add USD4

Size: 259(W)x159(H)x104(D)mm

Weight: 1.8Kg



Image Sensor

1/3" SONY

1/3" SHARP

1/3" SONY

1/3" SHARP

1/3" SONY

Horizontal Resolution

700TVL, Low Illumination, Real WDR, OSD, 3D NR, UTC Effio-P

700TVL, Low Illumination, Super WDR, 3D NR, Demist, SLR, Sense-up, UTC

700TVL, Low Illumination, DWDR, OSD, DNR,UTC Effio-E

700TVL, Low Illumination, DWDR, OSD, DNR

650TVL, Low Illumination, DWDR, OSD, DNR

600TVL, Low Illumination

500TVL, Low Illumination

Pixels

NTSC:976(H)×494(V),
PAL:976(H)x582(V )

NTSC:768(H)×494(V),
PAL:752(H)x582(V)

PAL:752(H)×582(V),
NTSC:768(H)×494(V)

PAL:500(H)×582(V)
NTSC:510(H)×492(V)

TV System

PAL/NTSC

IR Series Distance

50M

IR LED

8X36PCS

Lens

2.8-12mm Manual Zoom Lens (2M Pixels)

Sync System

自动

Usable Illumination

0.001Lux/F2.0

0.01Lux/F2.0

0.001Lux/F2.0

S/N Ratio

≥52dB (AGC OFF)

≥48dB (AGC OFF)

≥46dB (AGC OFF)

Gamma Correction

0.45

Video Out

Composite Signal (1.0Vp-p, 75Ω)

Scanning System

PAL:625 Lines, 50 Field/Sec;NTSC:525 Lines, 60 Field/Sec

Electronic Shutter Time

Auto:PAL 1/50-1/100, 000Sec;NTSC 1/60-1/100, 000Sec

Operation  Temperature

-10 ~ +50 RH95% Max

Storage  Temperature

-20 ~ +60 RH95% Max

White Balance

Auto

Power Source

DC12V 550mA

Dimension

259(W)x159(H)x104(D)mm

Package

59*38*40mm, 12PCS/CTN

Weight

1800g
