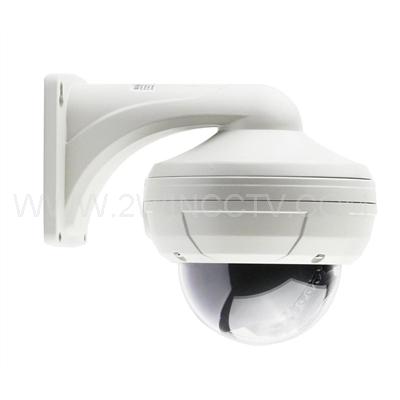

Vandalproof Dome Camera
Vandalproof Dome Camera
IR LED: ￠5X30PCS IR range: 25M
2.8-12mm Motor Zoom Lens (2M Pixels)
Controlled by RS485
Bracket included
Size: ￠135x 110(H) mm
Weight: 1200g
|
Image Sensor
|
1/3" SONY
|
|
Horizontal Resolution
|
Color 1/3" SONY 700TVL, Low Illumination,
DWDR, OSD, DNR, UTC Effio-E
|
|
Pixels
|
NTSC:976(H)×494(V),PAL:976(H)x582(V )
|
|
TV System
|
PAL/NTSC
|
|
IR range
|
25M
|
|
Lens
|
2.8-12mm Motor Zoom Lens (2M Pixels)
|
|
IR LED
|
￠5X30PCS
|
|
Sync System
|
Internal
|
|
Usable Illumination
|
0.001Lux/F2.0
|
|
S/N Ratio
|
≥115dB (AGC OFF)
|
|
Gamma Correction
|
0.45
|
|
Video Out
|
Composite Signal (1.0Vp-p, 75Ω)
|
|
Scanning System
|
PAL:625 Lines, 50 Field/Sec;NTSC:525 Lines, 60
Field/Sec
|
|
Electronic Shutter Time
|
Auto:PAL 1/50-1/100, 000Sec;NTSC 1/60-1/100,
000Sec
|
|
Operation Temperature
|
-10℃ ~ +50℃ RH95% Max
|
|
Storage Temperature
|
-20℃ ~ +60℃ RH95% Max
|
|
White Balance
|
Auto
|
|
Power Source
|
DC12V 350mA
|
|
Dimension
|
￠135x 110(H) mm
|
|
Package
|
55*42*42mm, 10PCS/CTN
|
|
Weight
|
1.2Kg
|
