TW-PC202
Name
3G GPS Wifi portable police dvr
Sale Points
1.IP66 Waterproof rate
2.3G,GPS,wifi
3.Bluetooth headset;
4.USB port-Ethernet transform
5.Powerful software
6.Working time >4 hours
Details:
1

PC202 series is a portable digital video recorder specially designed for personal purpose. It adopts high speed processor and embedded LINUX operating system. The state of the art portable MDVR use the latest IT technology, such as H.264 codec, adaptive network streaming, built-in GPS function, seamless switching of 3G/Wifi, Bluetooth, large capacity Micro-SD,etc.



Features:

1.    Portable design with industrial level IP66(waterproof);

2.    Support DV video input, standard 3.5 headset, support Bluetooth headset;

3.    Support GPS,3G ,WIFI

4.    Lithium battery power supply, working time >4 hours;

5.    Latest H.264 video compression technology;

6.    ASF standard record format

7.    Support micro-SD card record 64G;

8.    USB port-Ethernet transform;

9.    Bi-directional voice communication

10.   Central management software

11.   Different camera models is optional



Applications:

Police, Private security, Military, Oil, Mineral, field workers, sports, etc



Specification



Item

Description

Operation system

Linux

Security

User password authorization

Video

Video input

Default no camera; support DV input,external mini camera input

OSD

Time & date, device ID, GPS, etc.

Compression

H.264 with high performance processor

Video resolution

CIF, D1

Video Bit rate

CIF: 400Kbps ~ 1.5Mbps, 4 levels of bit rate optional

D1: 1000kbps ~ 2Mbps, 4 levels of bit rate optional

Preview function

Live view

Dual stream

Support

Audio

Audio input

Headset or Bluetooth headset

Audio output

Headset output or Bluetooth headset

Compression

G.726

Recording

Storage media

Micro-SD card, support up to 64G

File format/system

ASF record file format, FAT32 file system

Recording mode

Yes or no Startup record, Yes or no for record overwrite

Recording time segment

Record time setting15/30/45/60 minutes option

3G

Built-in 3G wireless transmission module, WCDMA, CDMA2000, TD-SCDMA system optional; Compatible with GPRS, EDGE;

GPS

Built-in GPS;

Talk via network

Can inter-communicate with center server by calling the center server via network

Configure parameters

Web config

Support IE config

SD card config

Support SD card config

Factory restore

Support

System upgrade

Support Micro-SD card upgrade,by network upgrade

Power supply & consumption

Power supply management

Press button for power on/off

Battery capacity

2000mAh,

Charging time

<3 hours

Working time

>4 hours

Working environment

Temperature

-20 ~ +50(-68°F ~122°F)

Humidity

20% to 90%

Dimension

71.2(W) x112.8(H) x32.4(D) mm

Weight

Net Weight: 280g(0.62LB)

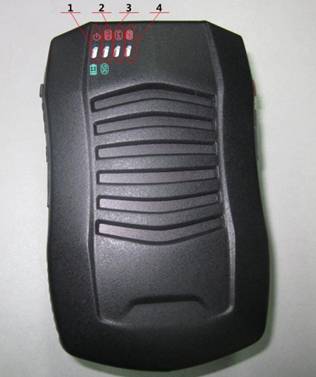

Front Face

1.        Power/Recharge indicator

2.        3G/WIFI indicator

3.        GPS indicator

4.        Bluetooth indicator

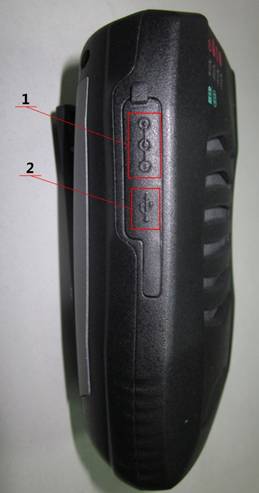

Left Side buttons

Open the anti-dust cover:

1.        Power adaptor plug

2.        mini USB to RJ45 interface

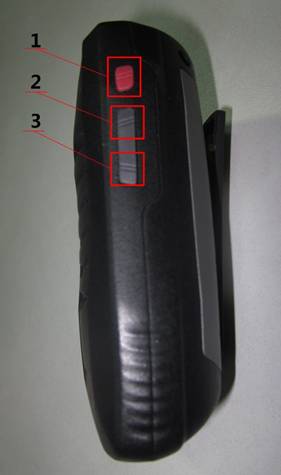

Right side buttons

1.        ON/OFF button

2.        Active require talk button

3.        3G/WIFI switch button

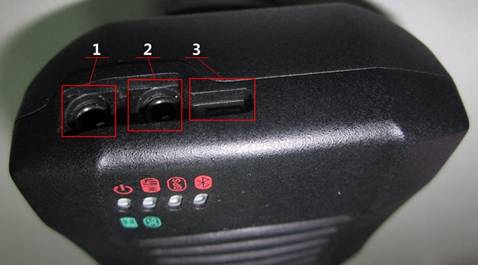

Top side interface

1.        Video input

2.        Earphone output/Mic input

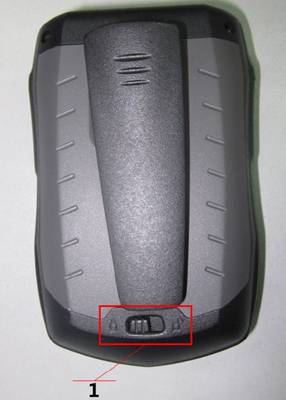

Back Panel

12.   Battery Cover Buckle

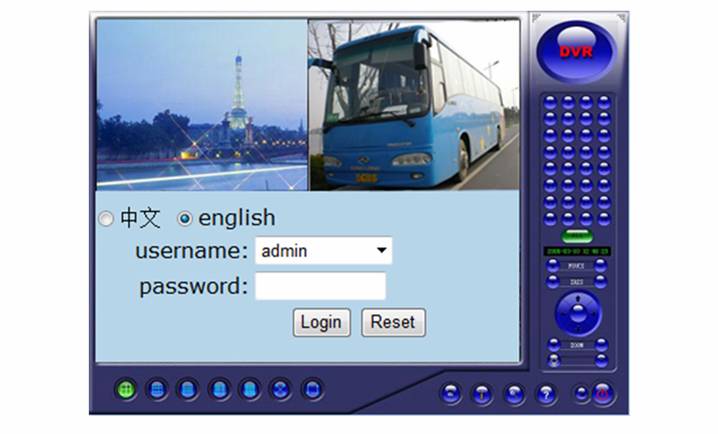

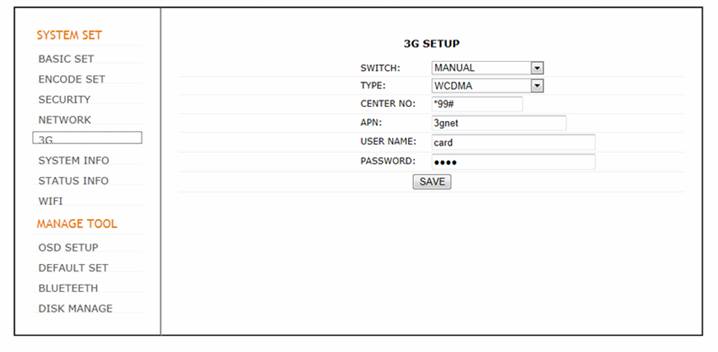

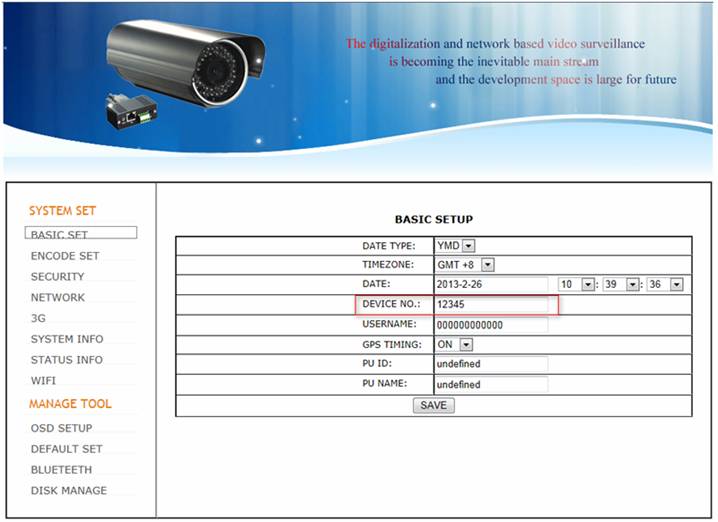

Setup by IE on PC

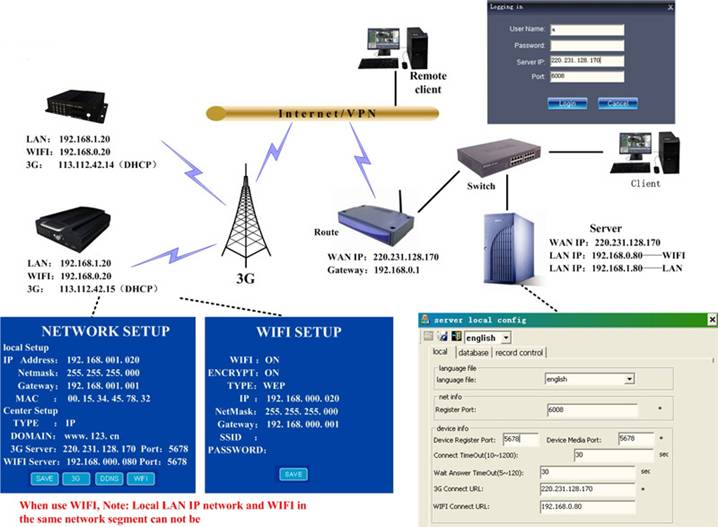

System connection

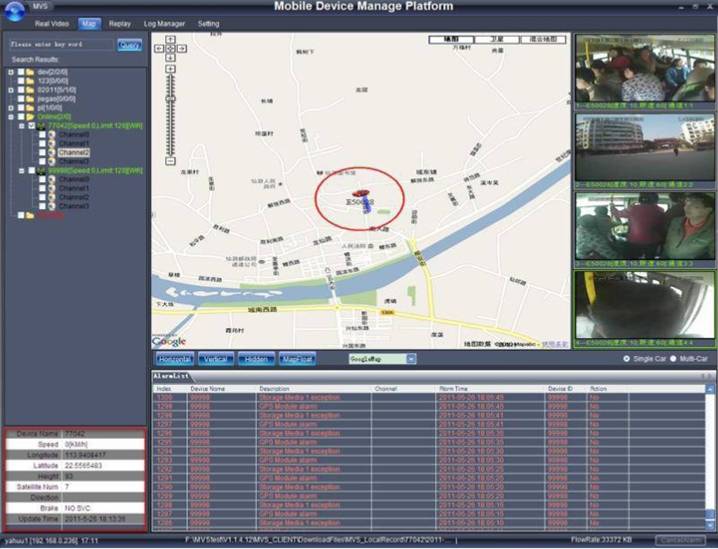

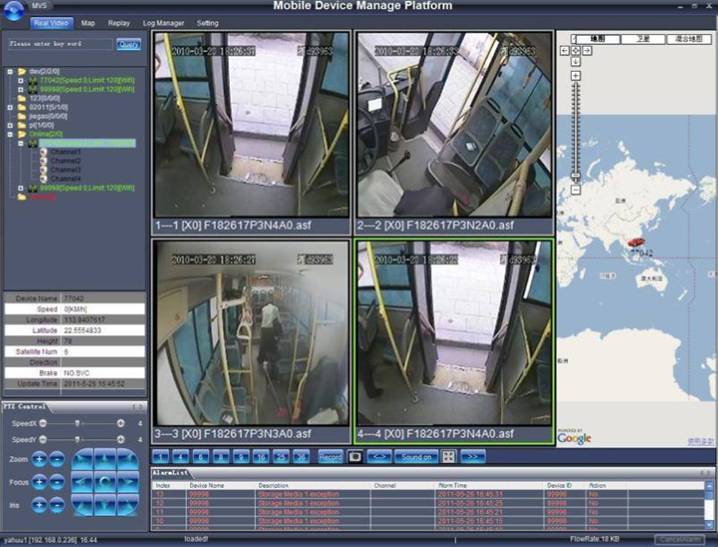

Manage Platform

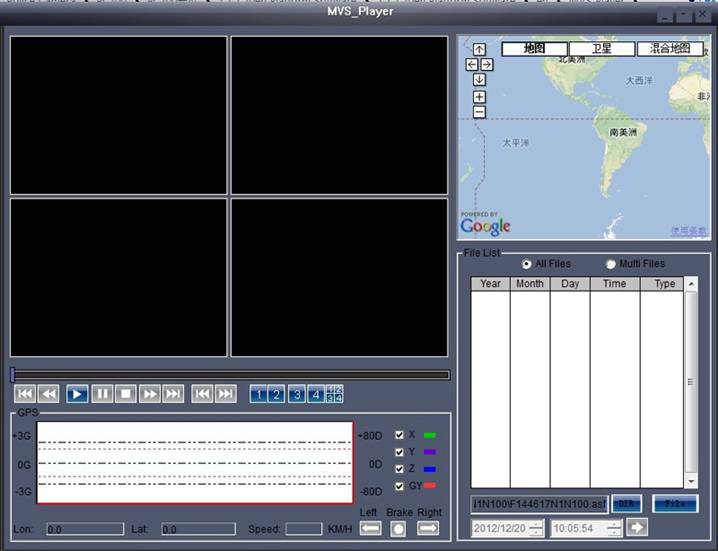

Player software
