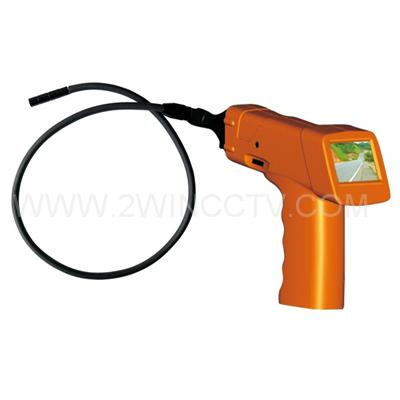

Inspection camera with 2" color TFT-LCD monitor
Inspection camera with 2" color TFT-LCD monitor
Mini high resolution waterproof camera with 80cm flexible tube
Three bright LED lamps with dimmer to illuminate viewed object
With build in batteries
Ideal applications: water restoration/HVAC and refrigeration/electrical
inspection/ automotive/pest control
Dimension:395x365x310mm 5PCS/CTN
3240PCS/20FT 6600PCS/40FT
7840PCS/40FT HQ
SIZE: 7.5x800mm SIZE: 240x147x60mm
Specification
|
Camera
|
Sensor
|
1/18 Inch
COLOR CMOS
|
|
SYSTEM
|
|
|
Effective
PIXEL
|
320×240
pixels (NTSC)
|
|
VIEWING
ANGLE(°)
|
55°
|
|
LENS
DIMENSION
|
0.8mm
|
|
MINIMAL
ILLUMINATION
|
0LUX 8cm
|
|
Unobstructed
Effective Range
|
10m
|
|
POWER
SUPPLY
|
DC5V of
4XAA batteries
|
|
POWER
CONSUMPTION(Max)
|
200±5 mA
(Type +5.0V)
|
|
S/N RATIO
|
>42dB
|
|
WORKING
TEMPERATURE()
|
-10--+50
|
|
STORAGE
TEMPERATURE()
|
-20 +75
|
|
Operation
Humidity
|
15%~85%RH
|
|
Dimensions(DxL)
|
Φ7.5x800(mm)
|
|
Weight(About)
|
160g
|
|
Monitor
|
Displayer
Type
|
2TFT-LCD
|
|
HORIZONTAL
RESOLUTION
|
420 TV
LINES
|
|
Video
System
|
PAL/NTSC
|
|
Video Size
|
27M
byte/Minute
|
|
Picture/Video
Pixels
|
640X480
|
|
Dimensions(LxWxH)
|
240x147x60(mm)
|
|
Weight(About)
|
210g
|
|
Work Time
|
3.5 Hours
|
|
Packing
|
Dimension(LxWxH)(Gift
Box)
|
380x70x290mm
|
|
Dimension(LxWxH)(Carton
Box)
|
395*365*310mm
|
|
G.W.(KG)
|
4.6KGS
|
|
N.W.(KG)
|
4KGS
|
Function:
Compliance with international safety certification, the products
meet the national standards.
Material:
Can be customized according to customer requirements any
specifications for your material product
Supply capacity:
the customer's requirements. you can use any packaging situation.
Packing:
Output is over 100000 pcs/month,Usually carton packaging.
Specifically according to the customer's requirements. you can use any
packaging situation.
