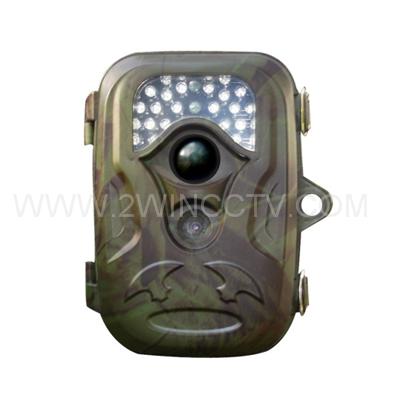

TW-CT2.0CM
Name
MMS,GPRS Hunting Camera
Sale Points
1.Motion detection function
2.MMS,GSM,GPRS,E-mail function
3.5/8/12 Mega Pixels Color CMOS
4.Video resolution:720x480;640x480;320x240
5.H.264 compression format
6.Built-in 2.0" TFT color screen
7.26pcs IR LED
8.IR distance:50 feet.
Details:
720P Night Vision Camera Clock/Clock DVR Camera Recorder/DVR Clock

MMS,GPRS Hunting Camera



CT2.0C/CT2.0CM is a kind of outdoor recording camera basically using for housing security, tracking,hunting to capture images or videos of animals without disturbing them. Specifically built to
withstand the weather conditions;
the hunting camera / outback camera is the ideal security observation system for front yard, back yard,
and any rural location as well.


The camera and recorder are both housed in the same anti-corrosive, lockable shell. Video footage or
 still photos record conveniently to SD Card, which can be view easily by 2” color LCD
that on the camera itself.



Battery operated totally no need any main power when you using this hunting camera / outback camera.
Therefore this unit can be
 installed in any place as required.



CT2.0C Series adapts IR thermo stimulation technology. Camera will automatically photograph or

shoot videos when triggered by moving object. The upgraded CT2.0CM can transmit the images to

users corresponding to the set phone and computers via email.



CT2.0CM Series is an ideal product for housing security, warehouse surveillance, and monitoring

wild animals with its camouflage appearance and nice shape. It is convenient to install or fasten,

could be used to take manual photographs and carry on long-time videos in Test mode.



Features:



Programmable 5/8/12 Mega pixel high-quality resolution.

Specialized compression format: H.264

26PCs IR LED for flash range as 50 feet.

With 8 AA alkaline batteries, the longest standby time is up to 6 months.

Available operation temperature: -68 F to 140 F

Impressive quick trigger time: 0.8-1s (GPRS trigger time is 1.2s)

In Interval setting, the camera automatically and constantly takes pictures or videos at set interval. This function is
specialized designed to monitor unattended objects, such as cold-temperature animal snakes or to
observe flowering, dolphin swimming.

With specified Time Setting, camera will be programmed to work during the set time every day.
This function can work together with Interval setting.

Time stamp of photos and video enables you to identify where and when the camera shot photos.

Built-in 2.0" TFT color screen to review photos and videos in camera.

Date, time, temperature and moon icons can be stamped onto photos.

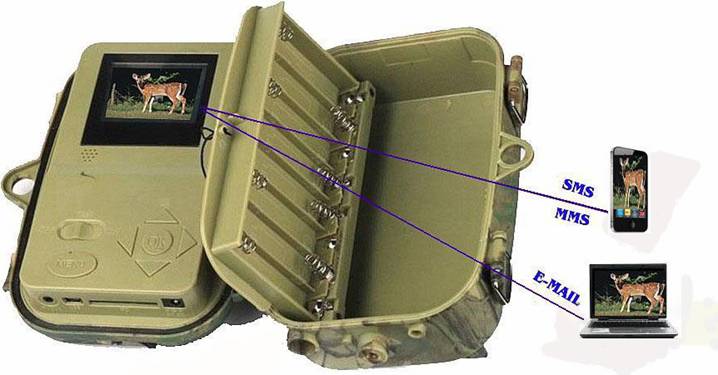

With MMS and GPRS function, camera can transmit photos to 4 settled mobile phones or 4 email account
according to set intervals constantly at lower battery consumption.

Red lights will flicker when the battery power is low.

All transmitted photos will save into SD card as well.

Easy to get real time photos from camera globally via GSM or GPRS network with four bands:
850/ 900/ 1800/ 1900MHZ.

Multiple photos-shot ensure you get clear images of objects.

Audio Recording brings you heart pumping like never before.

Two different TV OUT settings help you review photos even from Television.



Specification



Video

Image Sensor

5 / 8 / 12 Mega Pixels Color CMOS

Effective Pixels

2592x1944

Day/Night Mode

Color during day / B&W at night

Minimum Illumination

0 Lux (IR on)

White Balance

Automatic

Infrared Cut Filter

Yes

Lens

F=3.0; FOV=62; Auto IR-Cut-Remove (at night)

Viewing Angle

PIR: 105; Max View:52°

IR-Flash

Yes / No / 6M

PIR Sensitivity

PIR with 3 sensitive level: High / Normal / Low

GPRS

GPRS

Support Mobile, Email receiving images by motion trigger

Also support mobile visit the GPRS (not available in current model)

Recording

Video Format

H.264

Video Resolution

720x480; 640x480; 320x240

Video Frame Rate

15 or 30 FPS

Video Length

1-60sec. programmable

Still Image Format

JPEG

Still Image Resolution

12MP (4000x3000); 8MP (3264x2448); 5MP (2592x1944)

Multiple Still Image Capture

Yes (3)

Image Overlays

Date/Moon Phase

Record Delay Range

5 seconds~60 minutes 59 seconds

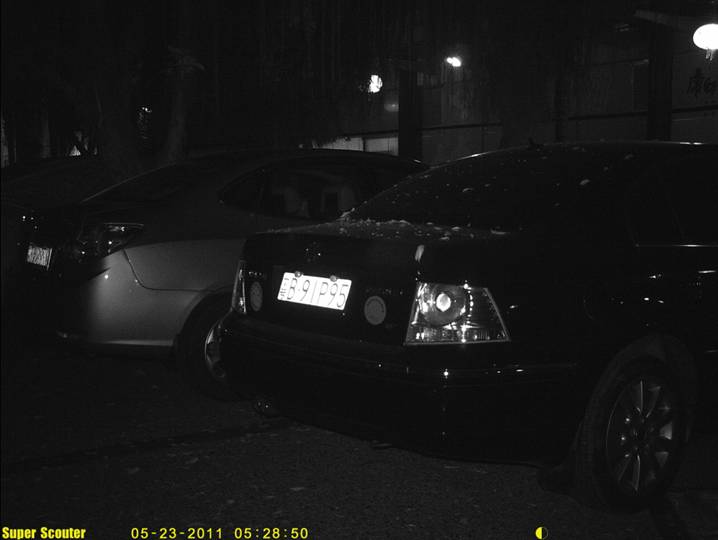

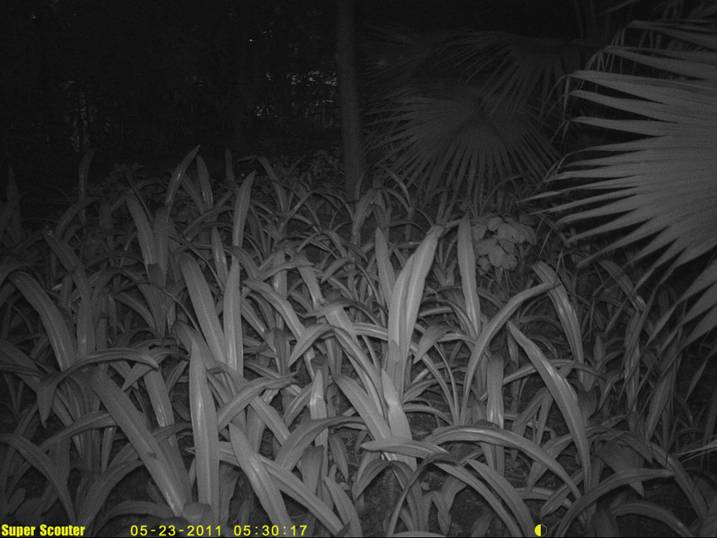

Night Vision

Night Vision Distance

0-15m

Number of Infra-Red LEDS

26pcs

General

Audio Recording

Available

Operation Power

6V DC

Battery Type

8AA

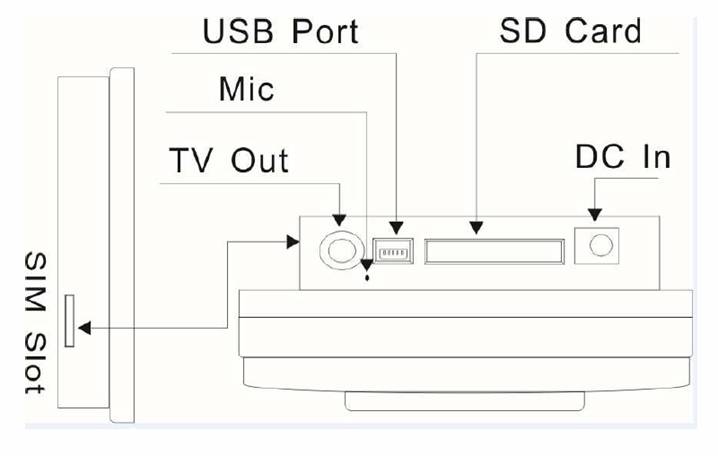

Interface

TV out (NTSC, PAL); USB; SD card holder;

Indoor / Outdoor

Outdoor

Memory Type and Size

SD Card up to 32G

Display

2.4” Color viewer LCD

Language

English

Sensor Type

PIR (Passive Infrared)

Sensor Range

0-15m

Sensor Trigger Speed

0.8-1 s

Operating Temperature

-20 - 60°C (Storage temperature: -30 - 70°C)

Operation Humidity

5%-90%

Waterproof spec

IP54

Dimensions

14.5x11.6x7.8cm

Weight

240g

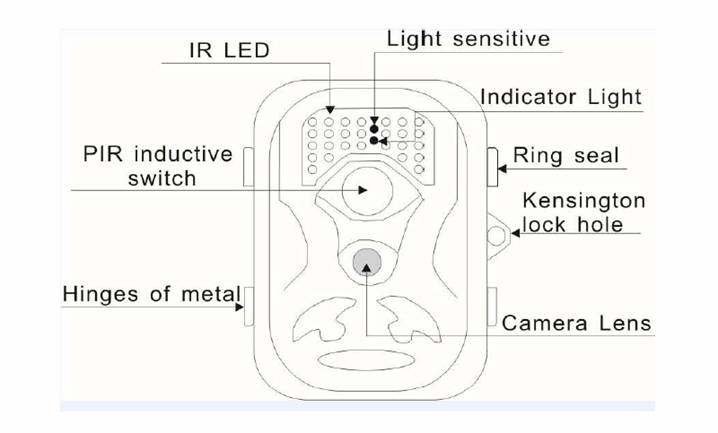

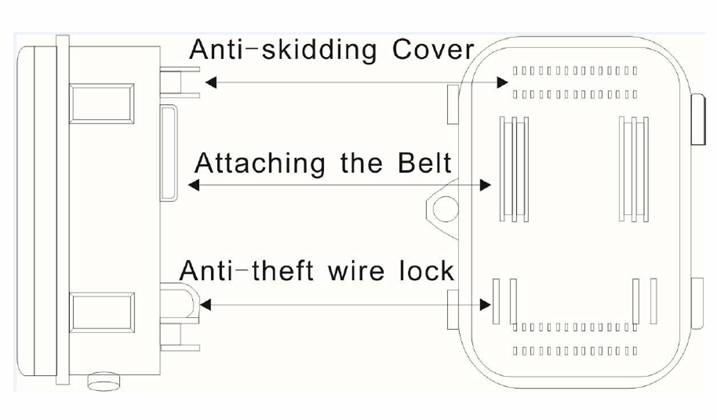

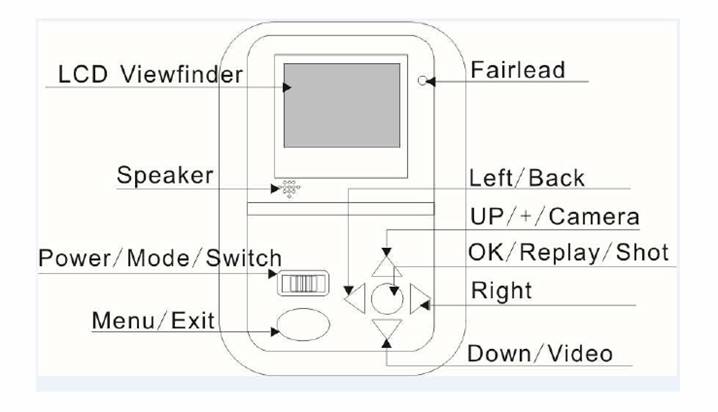

Appearance

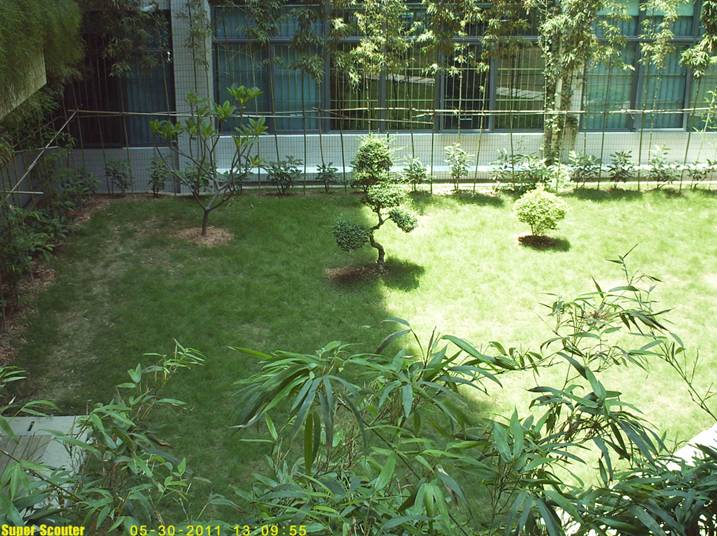

Taking Photo Effect( Daytime)



400 60
