TW-CT401
Name

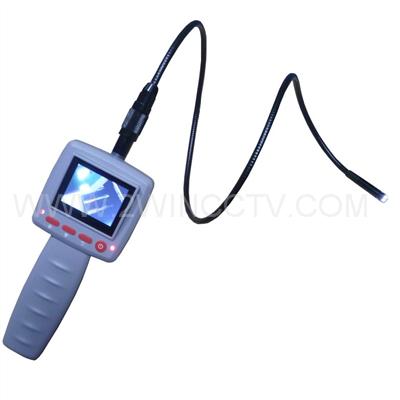

Flexible Portable LCD Video Borescope
Sale Points
1.Removable flexible tube
2.4pcs LED light
3.2.4" LCD Monitor
4.IP 67 water resistant
5.Len pixel:640*480
6. 10mm,5.0mm,8.5mm les optional
Details:
1

1.Allows for easy surveying of small, hard-to-reach places
2.Mini 10mm water-proof camera (640x480 pixels len,IP67 )with dia.6.8mm and 1 meter(3 ft) length flexible and removable extended tube
3.Manufactured and tested to water-proof level IP67(for imager head)
4.High quality 2.4"TFT-LCD color monitor powered with 4pcs AA batteries
5.Images on the screen can be turned to 180 degree
6.Adjustable contrast of the monitor screen
7.Adjustable brightness on the lens-mounted 4pcs LED lights and 1.5M for night vision;f/2.8 Lens with 54°Viewable Angle
8.Three useful optional accessories included: hook, mirror and magnet installed on the lens
9.Light weight, handheld design for easily finding, diagnosing and solving problems of hard-to-reach and hard-to-see areas ,Optional Extension Cable, Suitable for hard-to-reach inspection
10.Conformed with CE Standard



User could buy as an additional part or make replacement for damaged parts
1.Dia.3.9mm,4.3mm,5.0mm,5.5mm,8.5mm,10mm camera head for observing even narrow spots
2.Optional Useful accessories: Hook, Mirror, Magnet twisted on the lens for more surverying function
3.Flexible tube, Main unit, Hook, Mirror, Magnet

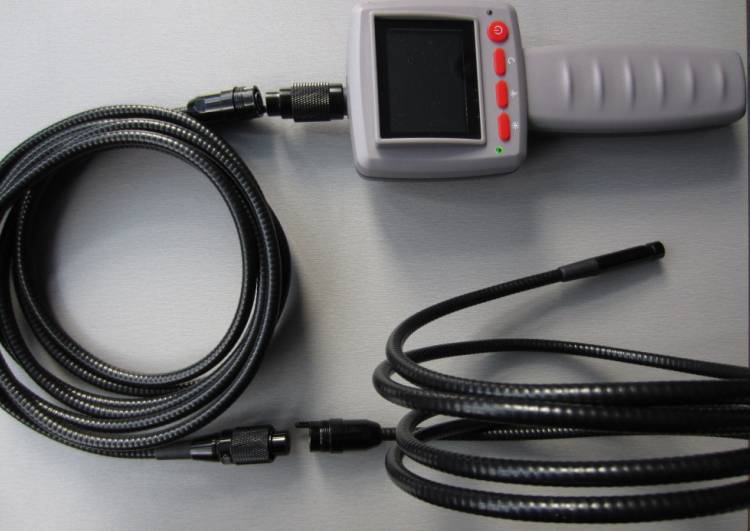

4.Extension tube with 1M,2M,3M,5M length for easy extending
5.Professional Carry Case or Color Gift Box Package


Advantages:

No MOQ for standard items
Customer colors, label and logo design
Stable, high quality products
Fast lead time
Professional service
Technical support
Partnership support with marketing and product integration
OEM/ODM



Specification:

LCD: 2.4 inch  TFT Color screen with 640 x 480 resolution
Lens Sensor Resolution: 640 x 480 pixels
Sensitivity: 0.7V (Lux. sec)
Color Mosaic: RGB Bayer Pattern
Automatic white comparison & exposure to light
Camera Illumination: 4 white LED



Camera:
Lens: f/2.8
Lens Coverage: 54°
Focal Distance: 3 ~ 8 cm
Outer diameter: 10 mm
IP 67 water resistant



Tube:
Metal Tube Length: 1000.0 ± 2.0 mm
Diameter of hard tube: 6.8 mm
Minimum Bending Radius: 4.5 cm
Operating Temperature: 0 ~ 45 °C
Power: 4 x 1.5V AA batteries (not included)
Power Consumption: 200 mA
Handle Length: 115 mm

This inspection camera has many applications including:

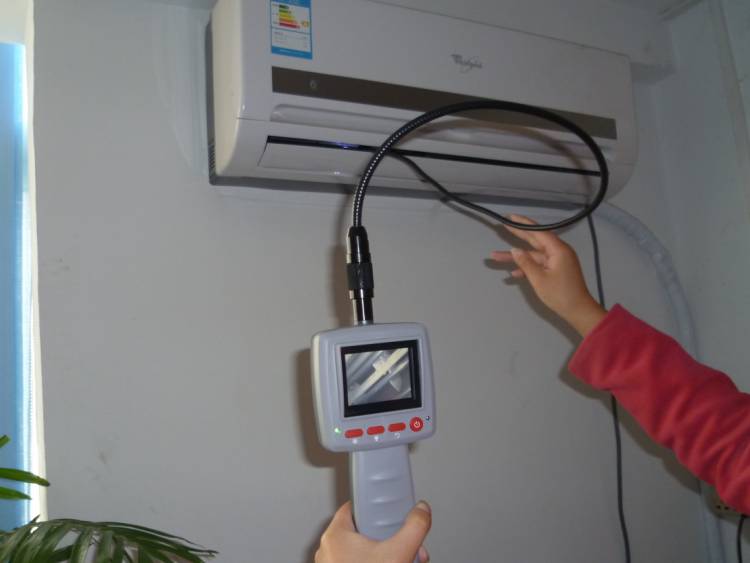

HVAC inspection,
Vent Pipe,
Machine Equipment,

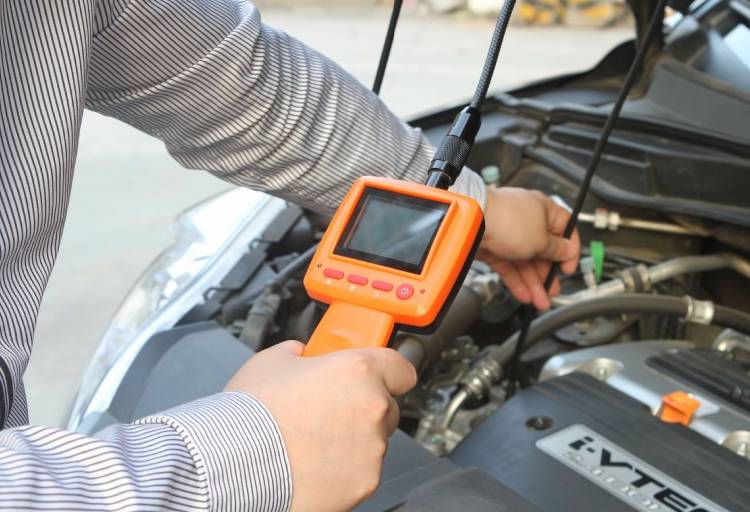

Engine,
Cable Routing,
Automotive / boat / aircraft inspection.



One Set Included:

1 x Main unit
1 x Flexible Camera (Installed)
1 x Magnet Tip
1 x Hook Tip
1 x Mirror Tip
1 x Instruction Manual
Standard Package





















400 60
