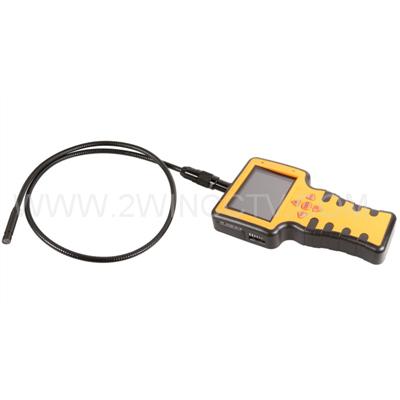

3.5" LCD Video Inspection Camera
Sale Points
1.Removable flexible tube
2.Lens Pixel:320*240
3.Built-in 4pcs LED light
4.6X zoom in and zoom out
5.Image and video recorded in TF Card
6.Support 16GB TF card
7.Power supply: rechargeble lithium battery

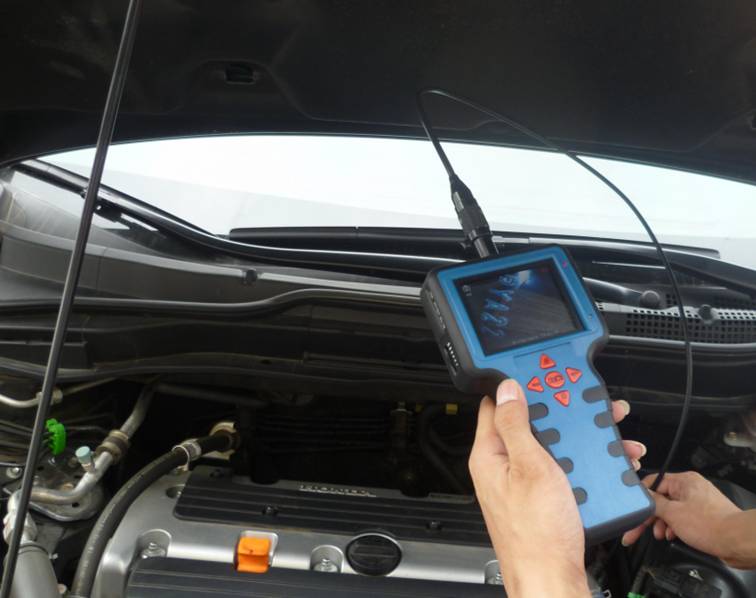

This 3.5" Color LCD Video Inspection Camera use optoelectronic technology to investigate hard-to-reach area. It helps you to diagnose broken part, weld point and released parts easily to save time and increase productivity.It has built-in 4pcs white LED light (with Brightness Control) on camera head to illuminate the inspection area. The 1 m Flexible tube is Waterproof with 5.5mm diameter , so that you can inspect area under water, gaps and holes. Optional Extension Cable (2m/ 3 m / 5m) allows you to extend the vision of inspection point.


1.Allows for easy surveying of small,hard-to-reach places
2.Mini 5.5mm water-proof camera (640x480 pixels len)with 1 meter(3 ft) flexible and removeable extended tube
3.Manufactured and tested to water-proof level IP67
4.Increase visibility with 6X digital zoom capacity
5.High quality 3.5"TFT-LCD monitor powered with built-in rechargeable Li-batteries
6.Video,pictures real-time recording capability,supports up to 16GB SD Card
7.Adjustable brightness on lens-mounted LED lights
8.Three useful optional accessories included:hook,mirror and magnet twisted on the len
9.Simple menu with eight different languages(optional)
10.Light weight,handheld design,flexible and convenient to use

User could buy as an additional part or make replacement for damaged parts
1.Dia.3.9mm,4.3mm,5.0mm,5.5mm,8.5mm,10mm camera head for observing even narrow spots
2.Optional Useful accessories:Hook,Mirror,Magnet twisted on the len for more surverying function
3.Flexible tube,Main unit,AV Cable,USB Cable,Hook,Mirror,Magnet,SD Card
4.Extension tube with 1M,2M,3M,5M length for easy extending
5.Professional Carry Case Package
No MOQ for standard items
Customer colors,label and logo design
Stable,high quality products
Fast lead time
Professional service
Technical support
Partnership support with marketing and product integration



3.5” TFT LCD

Len Dia.: 5.5 mm (8.5mm10mm optional)

Removable Tube Dia.: 5.5mm (6.8mm optional)

Length: 1000mm

Total Length: 1295mm

Len Pixel: 320*240

Extension tube length: 1M, 3M, 5M optional

Photo & image: zoom in /zoom out (max. 6 times)

Memory support 16G TF Card

4 pcs adjustable white LED lights

Built-in rechargable Li battery

Function: photo, video, self timer, memory, Playback, etc.

8 languages optional: Chinese, English, Japanese, Korean,Italian, Spanish, German, French

Accessories: A/V cable,USB cable, AC Adapter,

Packing: Tool box


Range of application:

HVAC Inspection

Vent Pipe

Machine Equipment


Cable Routing

Automotive / Boat / Aircraft Inspection


Accessories Included:

1 x AC/DC Adapter

1 x SD Card

1 x A/V Cable

1 x USB Cable

1 x Instruction Manual

Standard Tool Box Package
