TW-CT405
Name

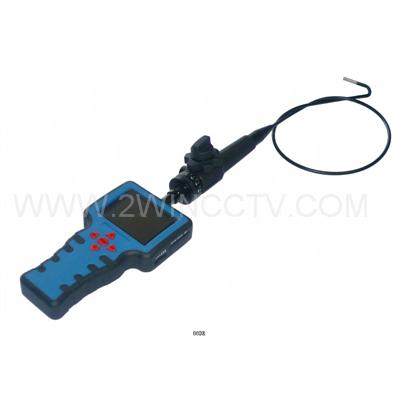

2 Way Rotational Endoscope
Sale Points
1.Two Way Removable Flexible Tube
2.Len Pixel:640*480
3.IP67 waterproof rate
4.Built-in 4pcs led
5.3.5" LCD Monitor
6.Image and video recorded with TF Card
7.Power supply: rechargeble lithium battery
Details:
1

Articulation Endoscope Specification with 2 way rotatable probe is innovative product of LCD borescope. Besides many advanced functions of its original one such as quick snap, quick video recording, image zoom in /out, storage a new function of front probe two-direction bending is added(you can revolve probe 180° to R or L direction, then revolve F to fix adjusted angle )The probe itself also allows a 120°revolving across its two directions. The design allows the user to adjust the observation angle amid the observed object making operation more easy and more convenient. The product has great practical value and applicable prospect in many fields such as automobile cylinder detecting and casting process detecting.





Function:

Snapshot, Video recording, Picture &Video review on LCD screen, TV Out, Transfer of picture &Video from SD card to PC

It has built-in 4pcs white LED light (with Brightness Control) on camera head to illuminate the inspection area. The 1 m Flexible tube is Waterproof with 5.5mm diameter , so that you can inspect area under water, gaps and holes. Optional Cable (2m/ 3 m) allows you to extend the vision of inspection point.



Features:
1.Allows for easy surveying of narrow,hard-to-reach places
2.Two way rotational tube with 5.5mm water-proof camera (640x480 pixels len)with 1 meter(3 ft) flexible and removeable extended tube
3.Manufactured and tested to water-proof level IP67
4.Increase visibility with 6X digital zoom capacity
5.High quality 3.5"TFT-LCD monitor powered with built-in rechargeable Li-batteries
6.Video,pictures real-time recording capability,supports up to 16GB SD Card
7.Adjustable brightness on lens-mounted LED lights
8.Three useful optional accessories included:hook,mirror and magnet twisted on the len
9.Simple menu with eight different languages(optional)
10.Light weight,handheld design,flexible and convenient to use

User could buy as an additional part or make replacement for damaged parts
1.Flexible rotational tube with 1M,2M,3M length for easy use
2.Professional Carry Case Package
3.Flexible tube,Main unit,AV Cable,USB Cable,Hook,Mirror,Magnet,SD Card



Specification:

Display: 3.5" TFT LCD Monitor Powered by DC5V

Interface: Mini USB 1.1/AV out

Battery(not user serviceable): Rechargeable Li-Polymer Battery (3.7V)

Power adapter: 100-200 V AC in/5.5 V DC out

Video Out Format:NTSC & PAL

Recording capacity :16 GB with TF card

Compression Format: MPEG4

Still Image Storage Format:JPEG(640*480)

Video Recording Format: ASF(320*480)

Working & Storage/Battery charging temperature range: -20°C to 60°C/0-40°C



Len Dia.: 5.8 mm

Removable Tube Dia.: 5.5mm

Length: 1000mm

Total Length: 1295mm

Len Pixel: 640*480

Extension tube length: 1M, 3M optional

Photo & image: zoom in /zoom out (max. 4 times)

Memory support 16G TF Card

4 pcs adjustable white LED lights

Built-in rechargable Li battery

Function: photo, video, self timer, memory, Playback, etc.

8 languages optional: Chinese, English, Japanese, Korean, Italian, Spanish, German, French

Accessories: A/V cable, USB cable, AC Adapter,

Packing: Tool box





Range of application:

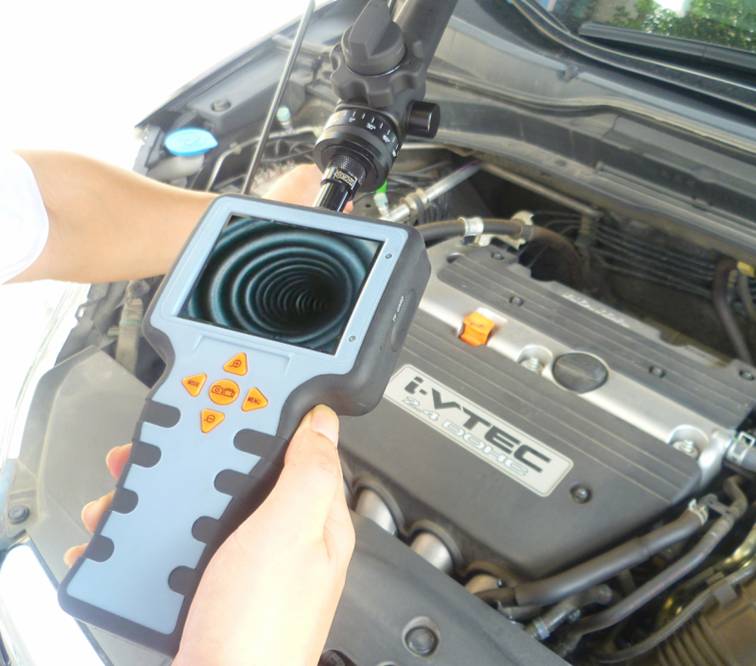

Engines Inspection

Boiler Inspection

Aviation Maintenance

Power Plants

Wind Turbines

Water Treatment Plants

Equipment Maintenance

HVAC

Plumbing

Manufacturing

Building Inspection

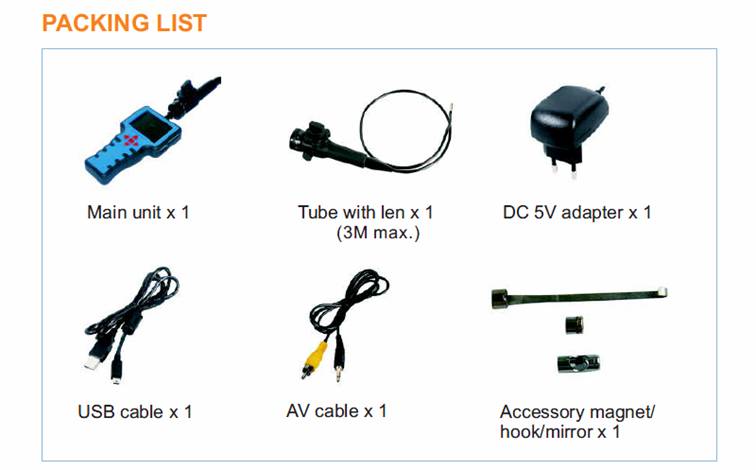

Accessories Included:

1 x AC/DC Adapter

1 x SD Card

1 x A/V Cable

1 x USB Cable

1 x Instruction Manual

Standard Tool Box Package



Advantages:
No MOQ for standard items

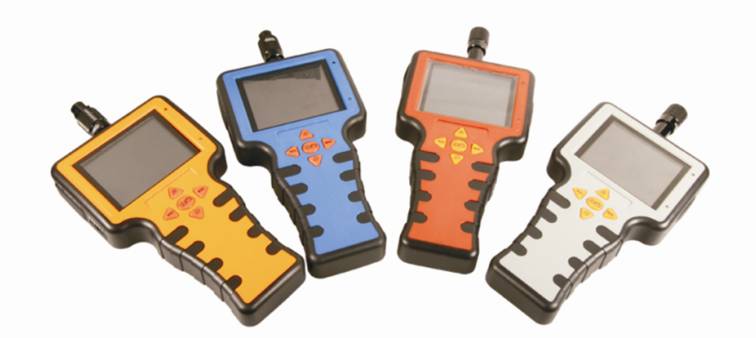

Customer colors,label and logo design
