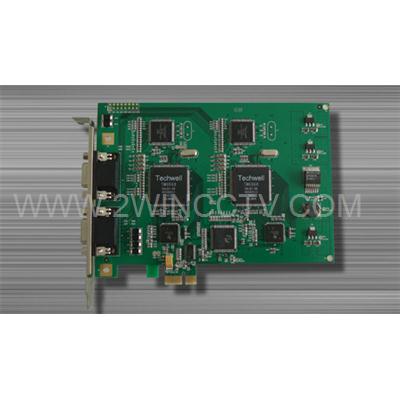

LS-6800 LINUX DVR card
LINUX-BASED DVR CARD
FEATURES:
PCI-E interface
Multiple installation mode: DOM, and CD-ROM
O/S: embedded Linux
Prompt installation
No system crash and virus concerns
Record / display / playback simultaneously

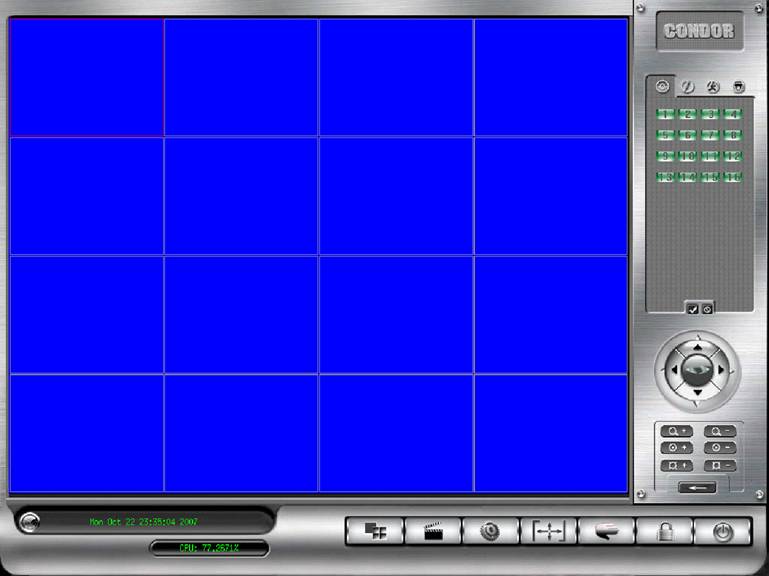

Powerful CMS software based on Windows
Mobile surveillance
Software upgradeable
SPECIFICATIONS：
|
O/S |
LINUX |
|
Compression |
H.264 |
|
Video format |
PAL；NTSC |
|
Video input |
16 channel |
|
Audio input |
8 channel |
|
Display/Record frames |
400/480F/S |
|
Display/Record resolution |
D1；HALF D1；CIF（ |
|
Max. channel one PC support |
32 channel |
|
PTZ |
YES |
|
Alarm |
YES |
|
Motion detection |
YES |
|
Backup |
YES |
|
Network |
YES |
|
Dimension/Weight |
162mm*120mm*38mm (L*W*D)/0.25KG. |
System requirements:
|
1PCS CARD with one computer
|
|
1 |
Motherboard（VGA onboard）
intel chipset |
|
P5G41C-MLX |
|
|
GA-G41M-ES2L
|
|
|
GA-G41MT-D3 |
|
VGA 9400GT512（讯景） |
GA-EP43T-S3L |
|
2 |
CPU |
INTEL CORE2 |
E7300,E7500 or above |
|
3 |
memory |
|
1G |
|
2PCS card with one computer
|
|
1 |
Motherboard（VGA onboard）
intel chipset |
|
P5G41C-MLX; |
|
|
GA-G41M-ES2L
|
|
|
GA-G41MT-D3 |
|
VGA 9400GT512（讯景） |
GA-EP43T-S3L |
|
2 |
CPU |
INTEL CORE2 |
Q9300 OR Q9500 |
|
3 |
memory |
|
2G |
Software :
