TW-V4000
Name
1080P GPS Vehicle black Box
Sale Points
1.HD 5M CMOS Sensor
2.2.5inch LCD
3.GPS,G-sensor function
4.Full HD 1080P 30fps
5.With HDMI port
Details:
1080 LCD,GPS Car black box

LCD GPS 1080PVehicle black Box



Function:

• 1920 x 108030FPS FULL HD video resolution

• 5MP sensor

•2.5 TFT LCD

Loop recording

USB data reader mode

1920х1080@30fps/1440х1080@30fps/1280х720@30fps/848х480

@60fps/848х480@30fps/320х240@120fps/320х240@30fps

• Support upto 32GB Micro SD card

• Vehicleengine started, video recording starts automatically.

• HDMIoutput, USB data reader mode available.

• GPS forpath, position, speed record



Specification



LCD screen size

2.5 TFT LCD(4:3)

SENSOR

5MP  OV5653

Optional language

Chinese Simplified / traditional Chinese / Korean / Japanese / Russian / English

Video

1920x1080@30fps/1440x1080@30fps/1280x720@30fps/848x480

@60fps/848x480@30fps/320x240@120fps/320x240@30fps

Video format

MOV

Picture resolution

12M/8M/5M/4M/3M

Picture format

JPG

Memory card

Micro SD

Microphone/ speaker

Built-in

Photographing mode

Single shooting, continuous shooting, multiple shooting

Light frequency

50Hz/60Hz

TV output

NTSC/PAL

USB interface

USB2.0

Power interface

12V-24V

Battery

Built-in

System requirements

Windows 2000/XP/Vista/Windows 7,MAC OSX 10.3.6 or above

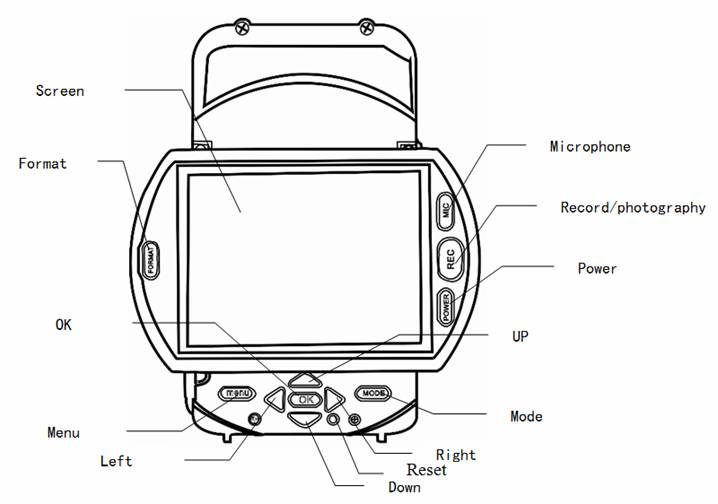

Front View



Back View





Left View



Right View

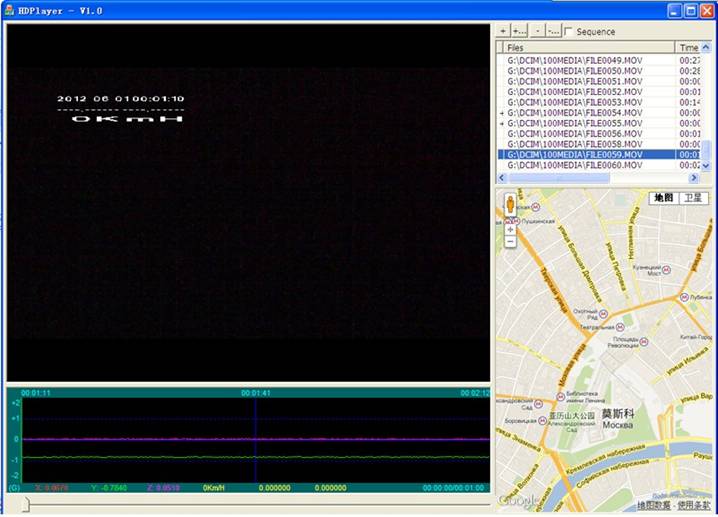

SoftwareInterface
