Product Guide
|
|
|
|

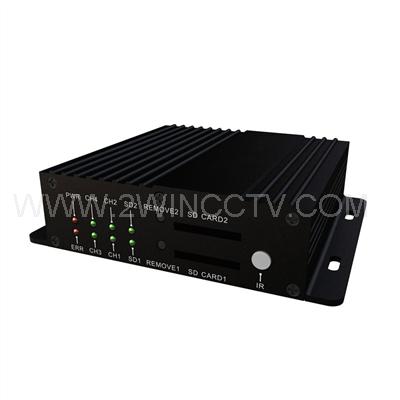

TW-MD4103
Sale Points
1.4ch video input,1ch output
2.GPS,3G are optional
3.1ch microphone or two lines audio input
4.4ch alarm input,2ch output
5.Support RS232,RJ45
6.DC6-36V wide voltage
7.Support DC12V/2A power output
8.Up to 2pcs SD card storage
|
|
Details:
•
- H.264 video compression format,
4-channel video input, 1 composite video output; used by the U.S. ADI
Professional 10bit image processing chip, in the same code on the market
shed more than 8bit chip processing to improve the quality of the picture
4 times. 4-channel image processing chip for each path independently
without disturbing each other.
- Industrial-level design, using
imported special vehicle connectors to ensure the stability of product
performance
- Accident under the power-off
protection function: using special UPS technology, which enables the
machine to cut off the external power supply can work 3 to 5 seconds, can
ensure video data integrity preservation, to avoid file corruption,
convenient accident inquiries.
- Adopt the most advanced license
plate display technologies and power-down off delay feature
- Support for GPS, G-sensor
accelerometer sensor, optional features
- Support for 3G wireless transmission function, the various 3G standards, WCDMA, CDMA2000, TD-SCDMA ...., or GPRS, EDGE, WiFi wireless transmission, optional features.
- Real-time video: 100f / s (PAL); 120f / s (NTSC); video resolution: CIF / HD1 / D1 optional.
Maximum can support 2-CH, D1, 2 CH, CIF format.
- 1 CH microphone or two lines of
audio input, G.726 compression format;
- 4 channel alarm input, 2-CH
alarm output.
- Communication Interface：RS232 、RJ45
- Video mode: start video, timing
video, police video.
- Video file formats: ASF, common
software can be used VLC player, or use the playback software package to
support 1CH or 4CH synchronization with playback
- Data Storage: Max 2 32G can support the SD card (the default one card). Japanese original SD card connector
- Boot time is short: You can
start within 15 seconds the machine quickly into the normal operating
mode. Support key switch machine, timer switch machines, delay
shutdown.
- 8-36V DC voltage input
,suitable for all kinds of vehicles; DC 12V/2A output
- low power consumption, the
machine to normal working condition <5W;；
- High-performance
- anti-vibration
- Wide temperature and operating
range, operating temperature: -25 ℃ ~ +70 ℃；
- Mini and industrial design
appearance, easy to installation, ease of concealment.
Specifications：
|
Item
|
Description
|
|
Operating system
|
Linux (2.6)
|
|
Video Compression
Format
|
H.264 main profile.
Using Hisilicon Hi3511 high-performance processor, 10bit sample chips. Each
video was processed separately, without disturbing each other work.
|
|
OSD
|
Character overlay
function, support logo, time and date, vehicle ID and other information as
the video.
|
|
GUI
|
Graphical OSD
Interface
|
Through the remote
control to set system parameters
|
|
Video and video
systems
|
Video Input
|
From 1CH to 4 CH CVBS
video input, 1.0Vp-p, 75Ω
|
|
Video Output
|
1CH CVBS video output,
1.0Vp-p, 75Ω
|
|
Preview
|
To support 1CH and
4-CH preview format
|
|
Video Resolution
|
Support CIF, HD1, D1
optional, maximum support 2CH D1 + 2CH CIF
|
|
Video Quality
|
1-4 video quality
options, the maximum 1, minimum 4
|
|
Video Rate
|
PAL: 100F/s , CCIR625 line,50 field；
NTSC: 120F/s, CCIR525 line,60 field;
CIF: 256Kbps ~
1.5Mbps, 4 levels picture quality optional
HD1: 600Kbps ~
2.5Mbps, 4 levels picture quality optional
D1: 800Kbps ~
3Mbps, 4 levels picture quality optional
|
|
Video stream standard
|
ISO14496-10 standard
|
|
Video mode
|
The default
auto-video, support regular video, alarm video
|
|
Audio
|
Audio input
|
1CH microphone or 2CH
linear input
|
|
Audio output
|
2CH output, Output
Level:1Vpp ~2Vpp
|
|
Compression Format
|
G.726, Rate 5KB/s
|
|
Alarm
|
Alarm Input
|
4CH Alarm Input
|
|
Support police before
the 10 seconds and the video-length dynamically allocated
|
|
Alarm output
|
2 CH Alarm output
|
|
Communication
Interface
|
RS232，RJ45 10M/100MAutomatically adapt to network interface
|
|
Wireless Transmission
|
Support built-in 3G wireless transmission capabilities, WCDMA, EVDO, HSPA, TD-CDMA .... optional, (GPRS, EDGE, WiFi wireless transmission can be customized).
|
|
GPS ,G-sensor
|
Support Module
Built-in
|
|
Video Storage
|
SD storage card
|
Support for two SD
cards, each with maximum support 32G, loop video, automatic switching, data is automatically covered
|
|
Firmware Upgrade
|
Supports SD Card
Upgrade
|
|
File Format
|
ASF
|
|
File System
|
FAT32
|
|
Video playback
|
Video Search
|
According to the time
video, video mode (alarm, normal), video memory card video file, etc. to
search for video.
|
|
Replay
|
Maximum support 4-ch
synchronization with playback, while the vehicle information on file for
analysis, support fast forward, rewind, play, pause,
|
|
Support for 2, 4, 8,
16 times the speed of fast forward or rewind
|
|
Power and consumption
|
Power
|
1, key switch machine
--- According to the signal switching machines, can also be set to delay the
shutdown. 2, timer switch machine
|
|
Input
|
DC:+8V ~ +36V
|
|
Output Voltage
|
+12V@2A；+5V@0.5A
|
|
Power-Off Protection
|
UPS technology, video
data intact saved to ensure that the file is not damaged when an unexpected
power down.
|
|
Power Rate
|
Normal working
condition＜5W; Standby＜0.5W
|
|
Work environment
|
Temperature
|
-25℃ ~ +70℃
|
|
Humidity
|
20% to 80%
|
|
Security Management
|
Password
access
|
User passwords,
administrator password, two-level management
|
|
Other
|
Size
|
112(W) x36(H) x138(D)
mm
|
|
Net weight
|
450g
|

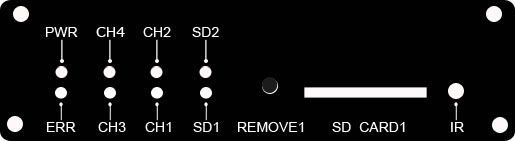

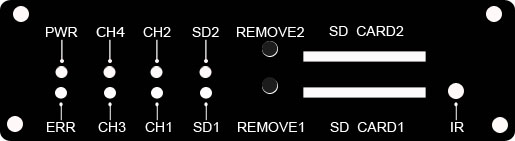

The front panel for the
device which supports solo SD card:

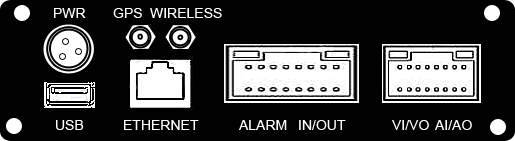

Back panel:

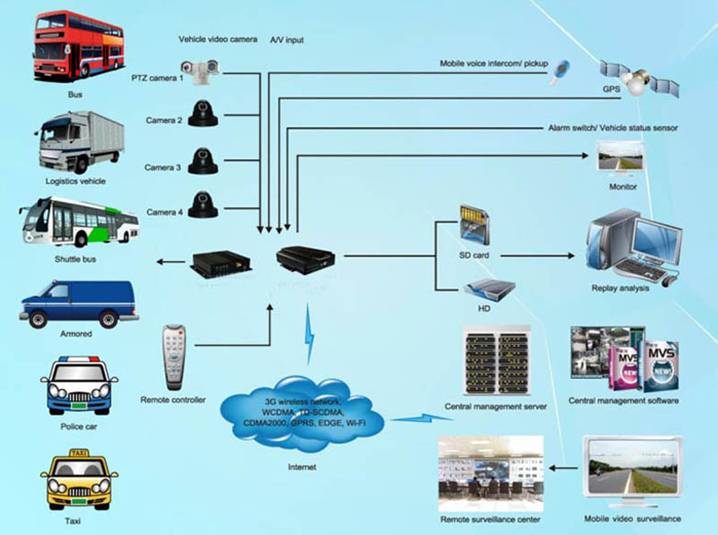

Connection Picture

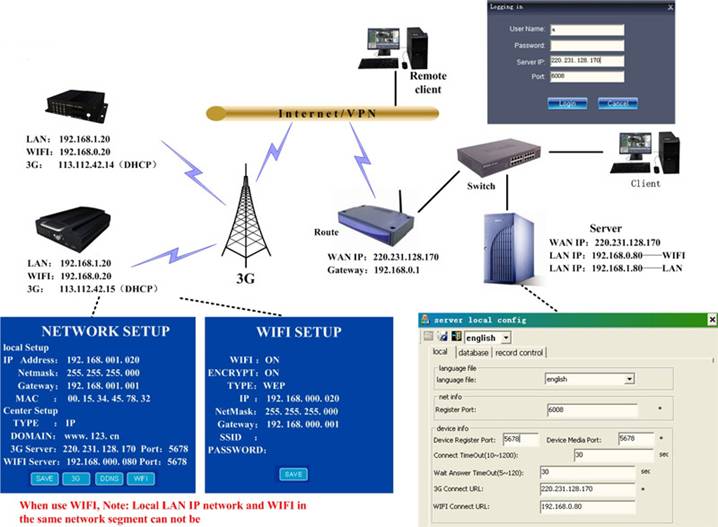

Manage Platform

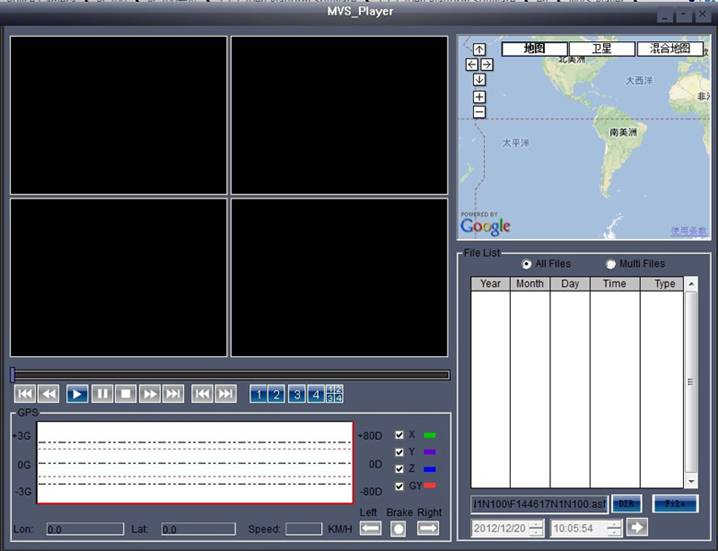

Player software

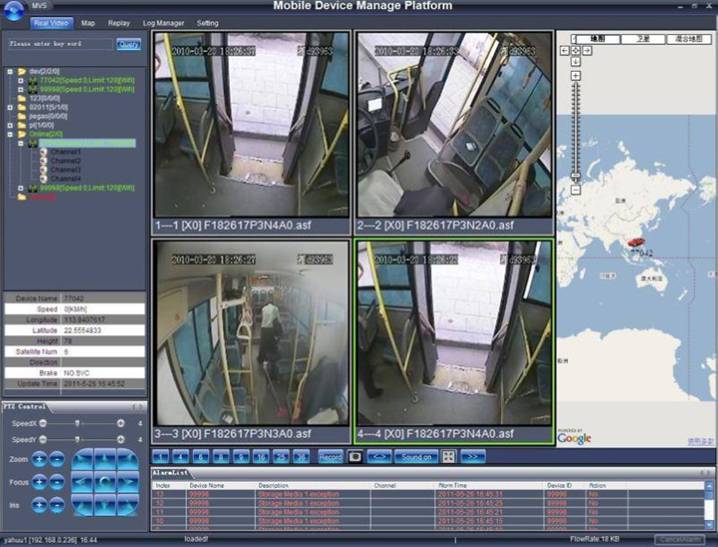

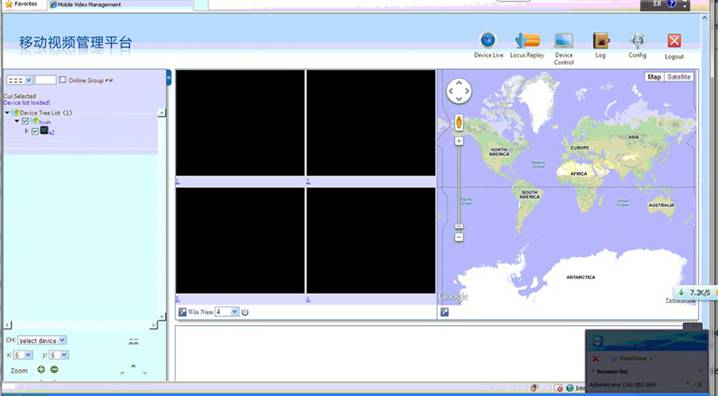

IE Mobile Video
management (Optional)

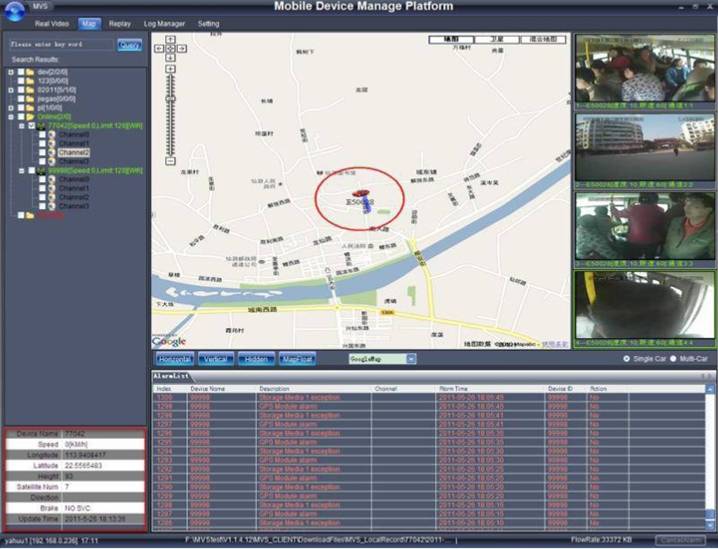

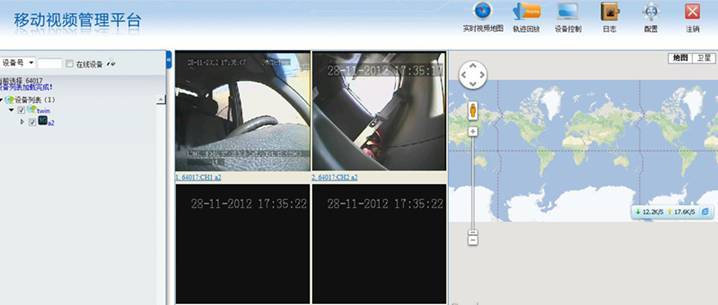

IE living view interface
|
|
