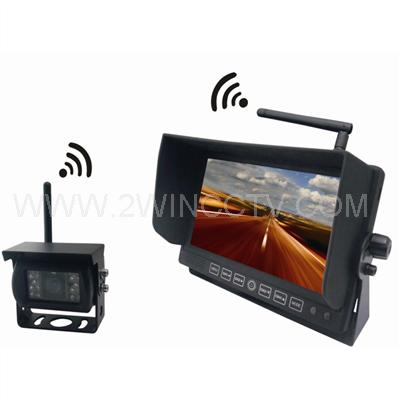

7” Wireless
Rear View System (1pcs wireless monitor + 1/2pcs wireless cameras)
Monitor
7 inch 16:9 monitor
Resolution:800*RGB*480
System PAL&NTSC auto-switching
Power supply:12-24V
Built-in 2.4G wireless function, can receive audio/vedio
4 trigger signal, 2.4G 4point could switch
2.4G in open
area:100M
Built-in speaker
OSD menu, remote control
Touch button screen
Dimention:191*140.5*32mm
Camera
Image sensor: Sharp 1/4CCD
Definition:420TV line
Mini illumination:05.lux
image angle:120
System: PAL&NTSC auto-switching
2.4G wireless
transmitter:100M in open area
Power supply :12V~24V
Water proof class :IP67/68
Aluminum alloy shell, outside hanging design
special for bus, truck.
Waterproof .shockproof, infrared night vision, Resistance to high
temperature and humidity
Standard accessories L1.5m power line
Monitor Specification
Screen Ratio
|
16:9
|
Back Light Luminance
|
LED, 300cd/m2
|
Resolution
|
800xRGBx480
|
Compatible system
|
NTSC & PAL (automatically)
|
OSD control
|
Color, Brightness, Contrast, Volume, Language
(English, Deutsch, French, Spanish, Portugal, Italian, Dutch,
Simplify Chinese)
|
View angle
|
Hor. L(70) R(70) Ver. UP(50) DOWN(70)
|
Image reversion
|
UP/Down and Left/Right
|
Power requirement
|
12V DC (12-24V DC optional)
|
Power consumption
|
5W
|
Storage temperature
|
-30〜80℃
|
Working temperature
|
-20℃ to 70℃
|
Size
|
180x140.5x32 mm
|
Weight
|
630g
|
Key color
|
Laser etching white button
|
AV Inputs
|
4 way video input(VI/V2 wireless,V3/V4 wire),1 way audio
input
|
Number of Trigger and display
|
4 triggers
|
2.4G wireless
transmitting distance
|
100M in the
open area,
|
Optional functions
|
4 PIN connector
|
Other features
|
With removable sunshade, Full function remote control OSD
display, Built-in speaker, Built-in 12-24V power, With 2.4G
antenna, Shockproof, With 1 or 2 wireless waterproof
cameras
|
Accessories
|
Remote controller, Power supply cable , User manual,
Sunshade and bracket, Camera, 2.4G antenna, 2.4G
antenna with 3m extended line, 5.5 DC male head
extension cord, Hex wrench
|
Package
|
10pcs/box
net weight:12.7KGS
gross weight:13.5KGS
M: 62.4*46*24cm
|
Camera Specification
Image sensor
|
PC 1030 & Sharp 1/4 CCD
|
Resolution
|
420 TV line
|
Mini illumination
|
0.5 Lux, infrared night vision
|
Image View angle
|
120°
|
System
|
PAL& NTSC
|
2.4G wireless
transmitter
|
The distance can reach 100M in the open area,
Frequency point optional
|
Power supply
|
12V-24V
|
Waterproof level
|
IP 67/68
|
Appearance
|
Aluminum alloy shell, outside hanging design
|
Fit for
|
Bus and truck and some special vehicles
|
Other features
|
Waterproof, shockproof, infrared night vision,
Resistance to high temperature and humidity
|
Accessories
|
0.6m power
cable
|

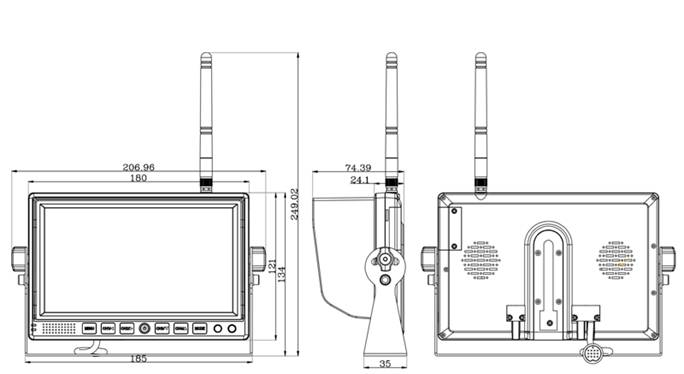

Outline Dimensional Drawing

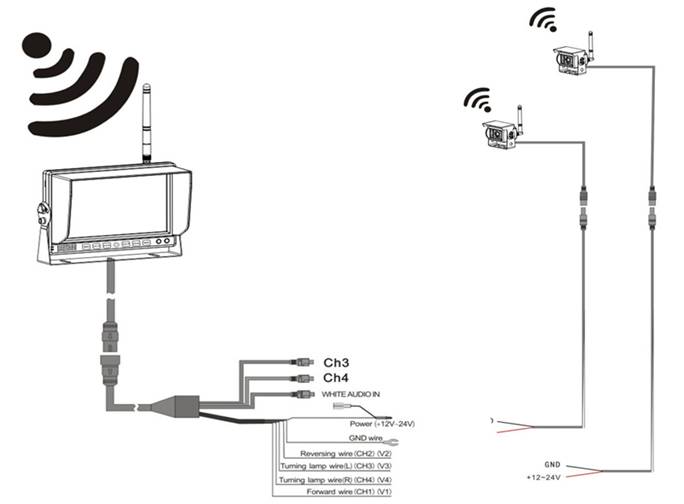

Connection Diagram
