TW-CM7014WK
Name
4ch Wireless Rear View System
Sale Points
1.7”Wireless monitor
2.4ch wireless video input
3.4pcs wireless camera
4.1/4" Sony CCD 420TVL Camera
5.100M in the open area
Details:
Inside CCD car camera

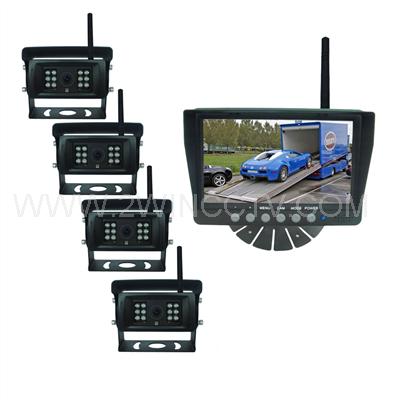

7” Wireless Rear View System (1pcs wireless monitor + 4pcs wireless cameras)



Monitor Feature



1. TFT LCD monitor with wide angle view and high resolution display.

2. Picture image may be adjusted for Horizontal, Vertical, Mirror and Normal viewing.

3. Select from 7 languages for user operation.

4. Mirror and Normal switch available.

5. Full-function remote control.

6. Multiple video formats available: PAL / AUTO / NTSC.

7. Up to 4 AV inputs.

8. On-board speaker.



Monitor Specification



1) 7" Monitor with Digital Panel

2) 2.4GHz Digital FHSS Hopping and Pairing Technology

3) Resolution: 800*R.G.B*480

4) Power voltage: DC 12V-24V

5) Operating frequency: 2400-2483.5 Mhz

6) Transmitting distance: 100 meter barrier free

7) Decompression form: MPEG 4

8) Emitting frequency: 18 dBm

9) Transmitting speed: 12 Mbps

10) Spread spectrum: frequency hopping

11) Hopping rate: 1200/S

12) Outer dimension: 182(L) X 75(W) X 124(H) mm

13) Contrast:  500:1

14) Brightness:  400cd/.

15) Viewing angle: U: 50°/ D: 60°, R/L: 70°

16) Operating temperature: -10~+65

17) Storage temperature: -30 to + 80 RH90%

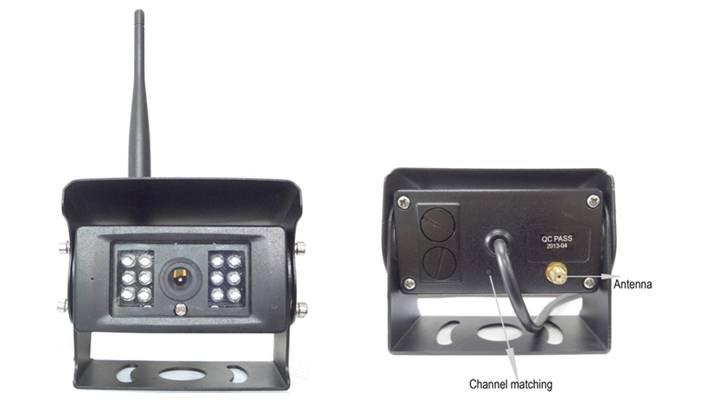

Camera







Specification



1/4" SONY CCD color camera

2.4GHz Digital FHSS Hopping and Pairing Technology

Resolution: NTSC: 510*492 pixels , PAL:  510*582 pixels\

Lens: 2.5mm

Min illumination: 0 Lux(LED on)

IR LED: 12 pcs

Night Vision distance: 15M

Waterproof rating: IP 69K

Viewing angle: 120°

Power voltage: 12-24V

Operation temp: -20°C ~ + 70°C

Port: DC

Shell material: aluminum alloy

Bracket material: iron

Dustproof, waterproof, hydrochloric acid prevention, explosion prevention

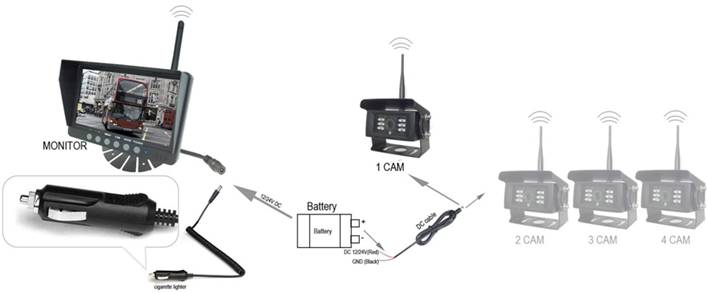

Connection Diagram
